Economic CNC Rotary Die Board Milling Cutting Machine For Rotary Die Board Making
WT-RC CNC Router Machine is use to cutting the rotary plywood for round die making. Which is eco-enviroment faster cutting speed than laser cutting machine. The precision is more enough to replace the laser cutting solutions for rotary die board making
| Quantity: | |
|---|---|
-
WT-RC
-
WT
-
8441100000
CNC rotary Die Board Cutting Machine
WT-RC Auto CNC Cutting Machine Technical Parameters:
| Technical Parameters | |||
| Cutting Speed | 600-1000mm/minute | ||
| Cutting Gap | 1.42 mm | ||
| Cutting Accuracy | +/-0.1mm | ||
| Server Motor | 3KW DORNA Server Motor | ||
| Main Axis | 20000r /min high speed main Axis Make sure the cutting accuracy | ||
| Gas | Air compressor supported to blow dusty, no need air dryer | ||
| Cooling system | CW-3000 Chiller to cooling main motor | ||
| Working Material | Beech, Plywood etc. | ||
| Material Thickness | 13mm, 16mm, etc. | ||
| Material Length | <=3000mm | ||
| Internal Diameter | 170-800mm | ||
| Best Files format | DXF,DWG,CDR,PLT | ||
| Weight | 1700kg | Volume | 4200*1200*2200 |
| Power | 3kw 110V 220V/ 60HZ 50HZ Single Phase | ||
| Usage | In Rotary Die Making, it Cut Rotary Die Board | ||
| Recommend spare parts | Saw Blade | ||
| H.S Code | 8441100000 | ||
WT-RC Auto CNC Cutting Machine Features:
Features :
Specially developed software can import your CAD designs of corrugated box, computer controls cutting drill on servo motors to do cutting job on rotary die board, exactly same as your design.
Cutting Unit:
It cuts with special drill. (one drill can cut several even more than 10 sets of dies)It is not laser.
Advantages:
Compared to Hand Cutting: higher accuracy, higher efficiency and perfect cutting
Compared to Laser Cutting: low power consumption, low running cost, milling cutter consumption only, no need expensive air, no carbonization which results in better steel rule holding ability. More Environmental protection.
Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process

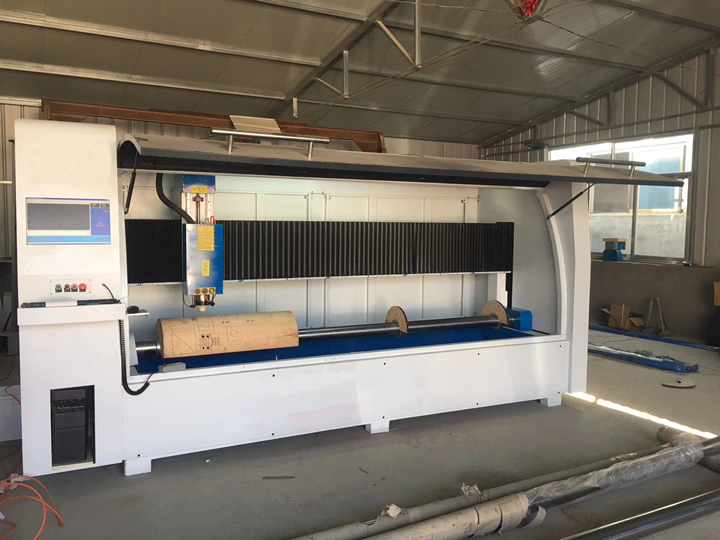

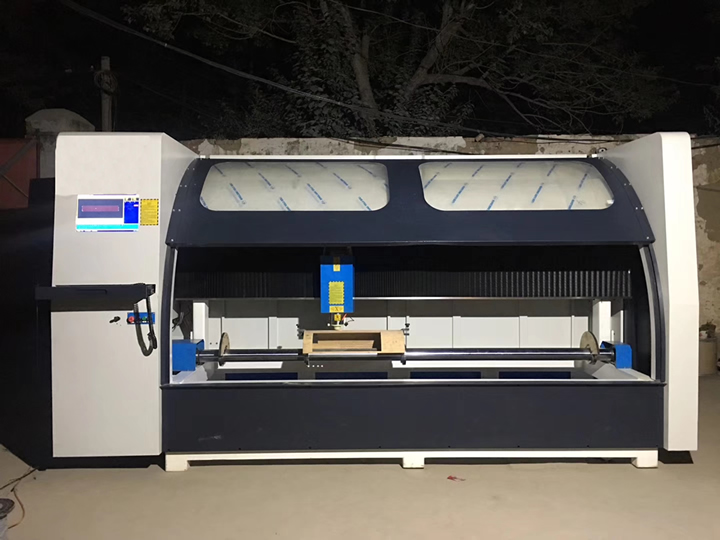

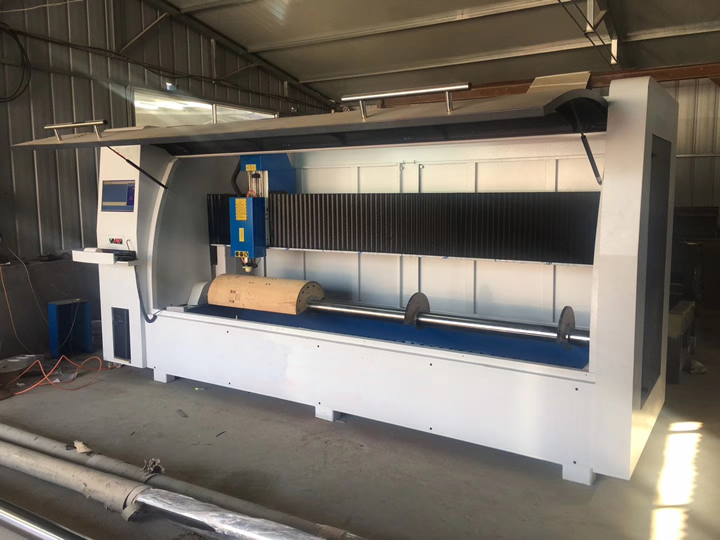

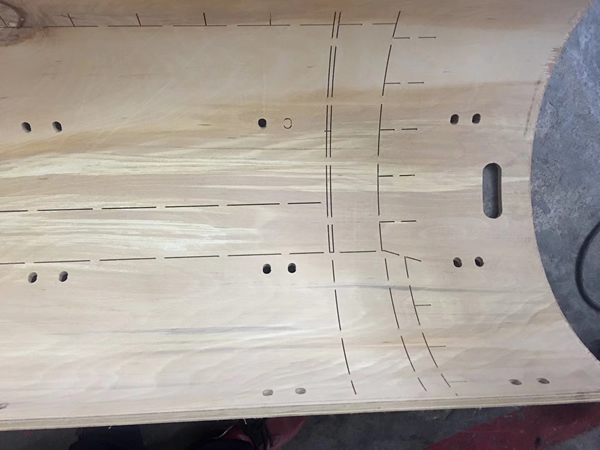

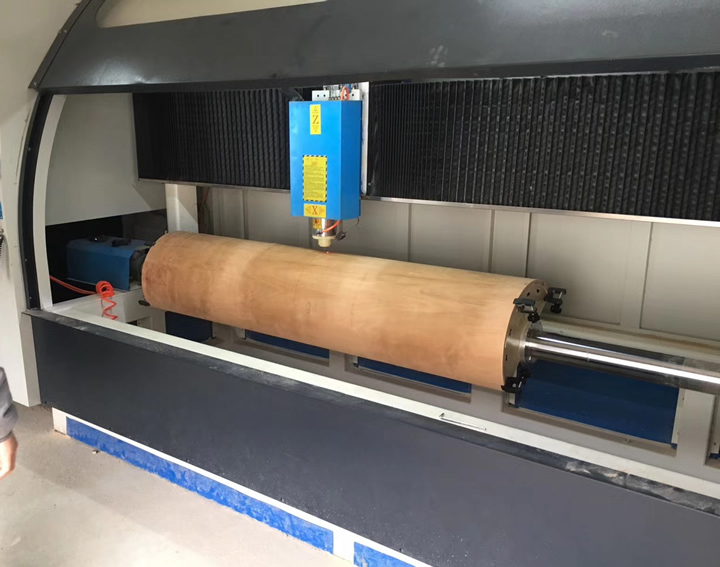

WT-RC Auto CNC Cutting Machine Pictures:
