metal cutting dies steel cutting rule die steel
| Quantity: | |
|---|---|
Cutting and Creasing Rule
1. Application
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
2. Types available
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.
3. Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching
| Name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°\52° |
| 0.53 | 23~23.80/1000 | 125 | |||
| 0.71 | 23~23.80/1000 | 100 | |||
| 1.05 | 23~23.80/1000 | 70 | |||
| 1.42 | 23~23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22~23.8/1000 | 100 | |||
| 1.05 | 22~23.8/1000 | 70 | |||
| 1.42 | 22~23.8/1000 | 50 | |||
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |
| Perforating rule | 0.71 | 23~23.80/10001*1~10*10 | 100 | 38HRC-54HRC | 42°\52° |
| 1.05 | 23~23.80/10001*1~10*10 | 70 |
4. Application Samples
5. Bended Shapes samples
6. Machines stuitable

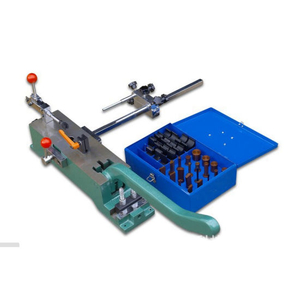

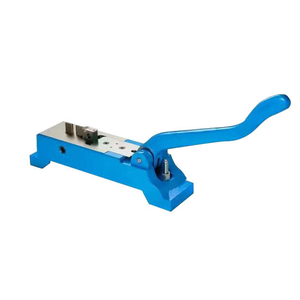

Auto bending machine manual bending machines
7. Our Services
1. QC System:100% inspection before shipment.
2. Drawing format: CAD / PDF/ DWG/ IGS/ STEP
3. Packaging: Standard package / Pallet or container / As per customized specifications
4. Payment Terms: 30 -50%T/T in advance,
70-50% balance before delivery; PayPal or Western Union is acceptable.
8. Shipment Terms
DHL, UPS, EMS, TNT, Fedex, sea transportation are available
9. Trade terms
EXW, FOB, CIF preferred
10. Contact Information
