Auto bending machine for die cutting Entry and advantage

Views:4     Author:Site Editor     Publish Time: 2019-11-09      Origin:Site

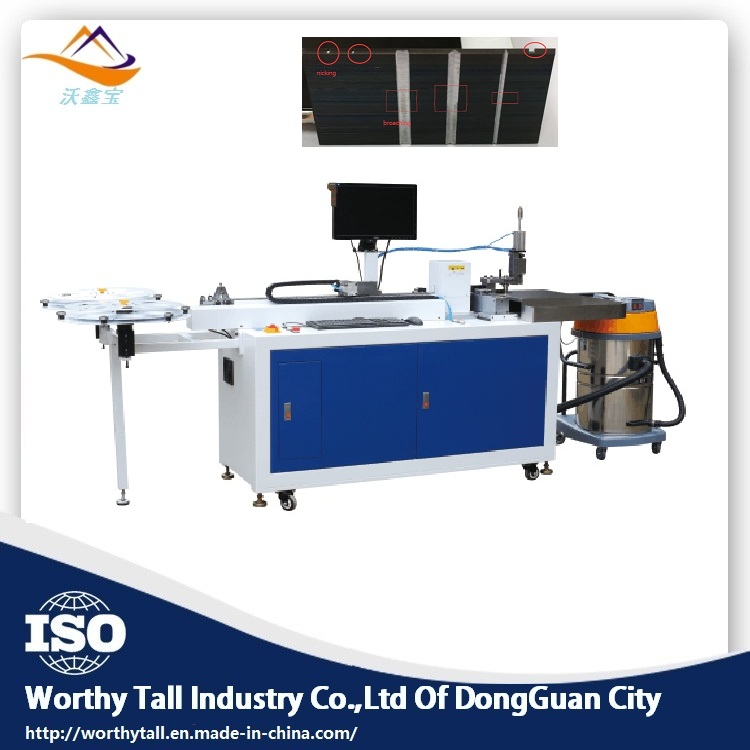

steel rule die bender


Auto bending machine for die cutting


parameter:

Function: machete, bridge position, flat cut, olecranon


Cutting method: swinging or automatic cutting


Blade thickness; 0.45mm, 0.53mm, 0.71mm, 1.05mm


Blade height: 8MM-30MM


Large bending angle: 100°


Small 90° bending radius: 0.4mm


Small curved front size: 1.5MM


Rear small cut size: 1.0MM


Feeding accuracy: ±0.03MM


Bending flatness: ±0.2MM


Good graphic format: DXF format


Air pressure requirement: 0.6MPA


Power requirements: 380V, 50/60Hz (standard)


Power: 1.3KW


Weight; 450KGS


Dimensions: 2700 × 1050 × 1350MM (length × width × height)




Advantage:


1. Support DXF file format, which can share the same file with the laser machine, eliminating the need for re-scanning, greatly reducing the workload of users and improving work efficiency.


2, applicable to a variety of die-cutting knives, wide application range, high flexibility, reducing user investment costs.


3, high-precision mechanical and electronic equipment to ensure the consistency of the machete.


4, high production efficiency, fast bending speed, good bending effect, greatly reducing the labor intensity of the master.


5. The machete machine with imported advanced mold steel has good wear resistance, high strength and durability, which reduces the user's use cost.
