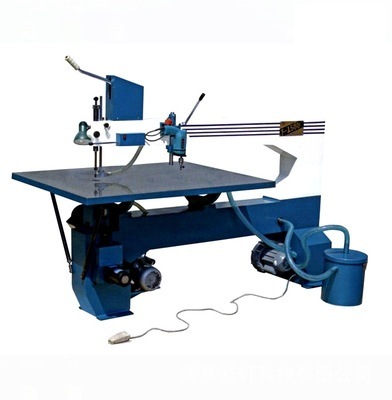

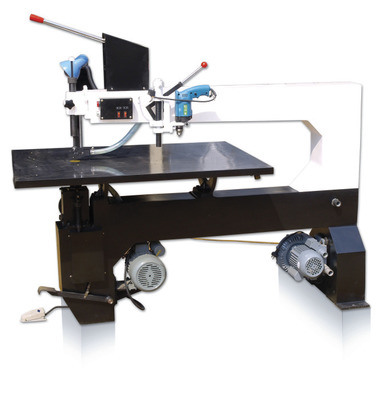

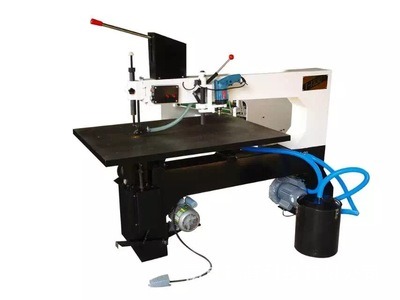

Automatic Flat Jig Saw Machine for Wood Board Die Making
| Quantity: | |
|---|---|
-
WT_J1250B
-
New
-
30mm
-
Wooden Plastic Nylon Board
-
1300/Min
-
25mm
-
170kg
-
1.1kw 220V 380V / 60Hz
-
1250mm
-
30mm
-
Making The Wooden Die Board
-
Yitai Packing
-
WT
-
Wooden Case
-
1520*700*1400
-
China
WT_J-1250B Die Board Cutting Machine

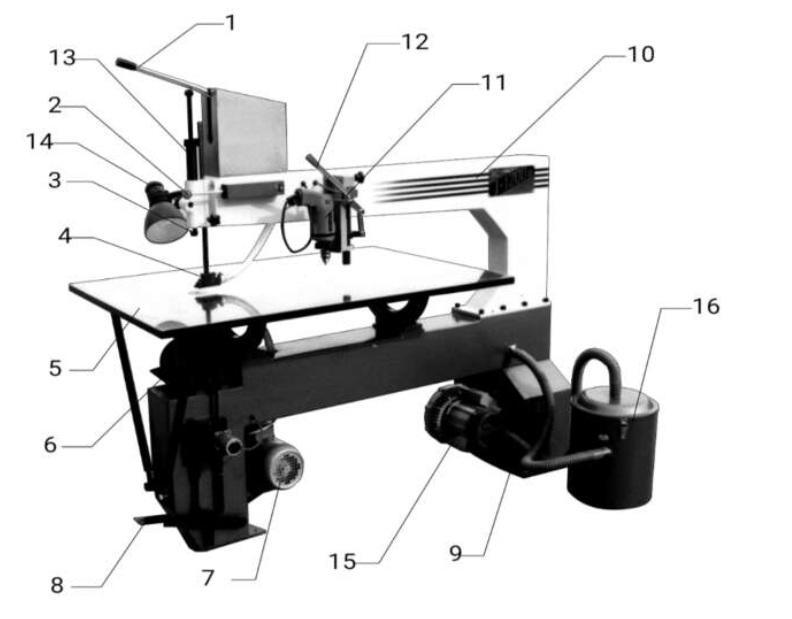

Note: 1,Handle 2,Switch 3,Up chucker 4,Presser foot 5,Workbench 6,Down chucker
7,Motor 8,Pedal 9,Electric box 10,Upper Bridge 11,Electric driller
12,Electric driller handle 13,Sleeve 14,Knob 15,Air pump 16,Dust bucket
For more Details pls check in Made in China Website:
http://worthytall.en.made-in-china.com
Note: 1,Handle 2,Switch 3,Up chucker 4,Presser foot 5,Workbench 6,Down chucker
7,Motor 8,Pedal 9,Electric box 10,Upper Bridge 11,Electric driller
12,Electric driller handle 13,Sleeve 14,Knob 15,Air pump 16,Dust bucket
- WT_J1250B Function Introduction:
| Technical Parameters | Maximum cutting plate thickness(mm) | ||
| 30mm | |||
| Cutting material | Wooden board,Plastic board,Nylon board | ||
| Saw blade reciprocating speed | 1300/min | ||
| Saw blade stroke | 25mm | ||
| Weight | 170kg | volume | 1520*700*1400mm |
| Total power | 1.1kw 220V 380V / 60HZ | ||
| Type | J-1250B | J-1250C | J-1500C |
| Maximum radius gyration(mm) | 1250mm | 1250mm | 1500mm |
| Maximum thickness of board | 30mm | ||
