Color box printing specific Steel rule die making machine Knife mold forming scimitar machine manufacturers

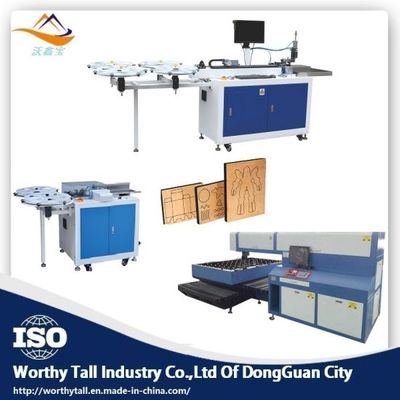

Steel rule die making machine

1. The scimitar mold made of imported mold steel has good toughness, high strength, good abrasion resistance, durability, and reduces the cost of use for users.

2. Professional design, powerful bending editing function, realizes multiple operations such as scimitar, bridge position, cutting, and eagle mouth on the same machine, greatly reducing the workload of the operator.

3. It adopts the one-time cutting method after bending to improve the cutting speed and accuracy without wasting materials and saving you costs.

4. It is driven by imported high-performance servo motor, which greatly improves production efficiency and reduces failure rate.

5. Single-time, single-group, and multi-group processing modes, realize batch and fully automated processing.

90 ° small R 1.0mm

180 ° small R 3.0mm

Large bending R 200mm

Large bending angle 130 °

Small 90 ° bending size 2.0mm

Small head cutting size 1.0mm

Small tail cutting size 1.0mm

Feeding accuracy ± 0.05mm

Bending flatness ± 0.3mm / 200mm

Bridge position width 6mm height (adjustable)

Supported file types dxf

Equipment size 1750 * 650 * 1350mm

Use environment Ventilation, dry below 40 degrees

Air pressure 0.6 ～ 0.8mpa

Voltage and frequency 220V 50Hz

Full load power 1.2KW
