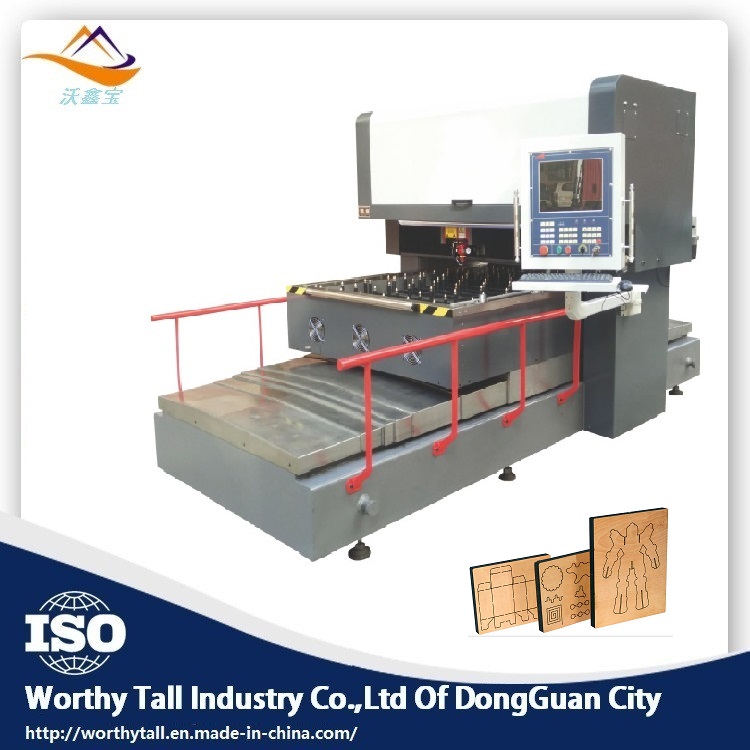

Knife template laser cutting machine

  Die board laser cutting machine

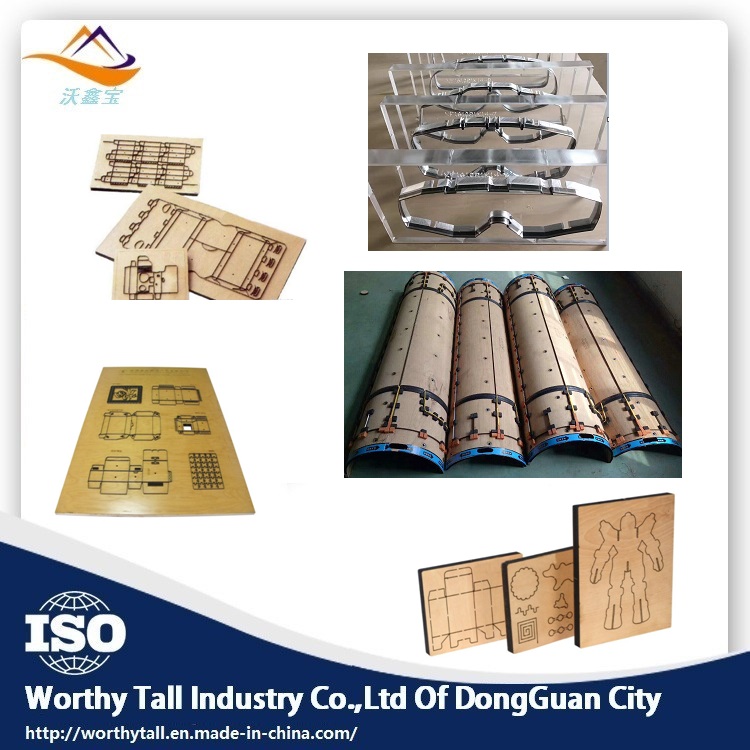

Die-cutting board processing industry, rubber sheet, plexiglass processing industry, all kinds of medium and heavy plate double-sided carving industry.

Chinese name Knife template laser cutting machine Working format 1200MM x 800MM Knife width 0.3~3MM Adjustable Cutting thickness "25MM

Applicable industry

Die-cutting board processing industry, rubber sheet, plexiglass processing industry, all kinds of medium and heavy plate double-sided carving industry.

Applicable materials

Wood plywood, wood board, plastic board, MDF, plexiglass board, etc.

Features:

Special mechanical structure and optical path structure, imported linear guides and advanced numerical control system ensure high stability and repeatability of cutting. Special exhaust system ensures long life of consumables and equipment, extremely low power consumption and consumables. Consumption, no need to use any inert gas, greatly reducing the user's operating costs, optical and mechanical integration, compact and robust structural design, modular function, and easy maintenance.

The main technical parameters

1) Processing speed: 0.5 m / min, 40 minutes to process a complex die-cut board (including auxiliary time)

2) Working format: 1200MM x 800MM (can be customized for larger processing format)

3) Knife width: 0.3~3MM adjustable

4) Cutting thickness: "25MM

5) Cutting accuracy: Machining accuracy <0.02MM Repeatability <0.005MM

6) Laser power: 300W (CO2 sealed off water cooling)

7) External light path: Adopt flight light path (reflective lens, focusing lens are imported)

8) Supported formats: PLT, EPS, BMP, DXF

9) Working gas: using ordinary air compressor (1000W)

10) Dimensions: 1600*2000*1200mm

11) Power supply: 220V (50HZ)
