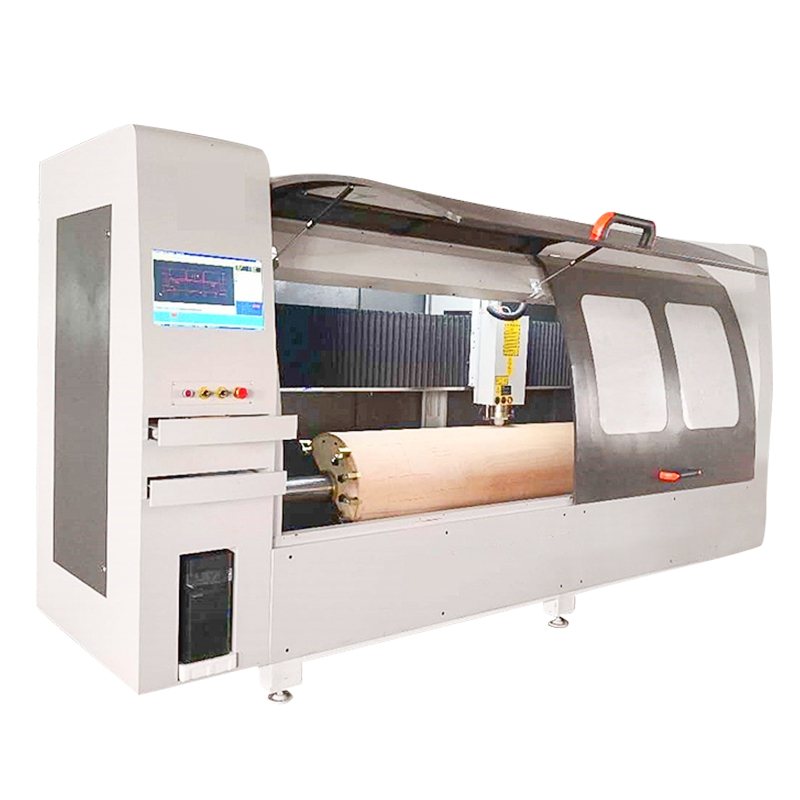

WT Rotary Die Cutter Rotary Wood CNC Cutting Machine For Die Board Making

WT-RC CNC Router Machine is use to cutting the rotary plywood for round die making. Which is eco-enviroment faster cutting speed than laser cutting machine. The precision is more enough to replace the laser cutting solutions for rotary die board making
Cutting Speed:
Material Length:
Internal Diameter:
Volume:
Weight:
Availability:
Quantity:
  • WT-RC

  • WT

  • 8441100000

>>> WT RC CNC Rotary Die Board Cutting Machine Details

细节

样品


>>> CNC Rotary Die Board Cutting Machine Technical Parameters

Technical Parameters
Cutting Speed 600-1000mm/minute
Cutting Gap 1.42 mm
Cutting Accuracy +/-0.1mm
Server Motor 3KW DORNA Server Motor
Main Axis 20000r /min high speed main Axis Make sure the cutting accuracy
Gas Air compressor supported to blow dusty, no need air dryer
Cooling system CW-3000 Chiller to cooling main motor
Working Material Beech, Plywood etc.
Material  Thickness 13mm, 16mm, etc.
Material  Length <=3000mm
Internal Diameter 170-800mm
Best Files format DXF,DWG,CDR,PLT
Power 3kw  110V 220V/ 60HZ  50HZ Single Phase
Usage In Rotary Die Making, it Cut Rotary Die Board
Recommend spare parts Saw Blade
Weight
1700kg
Volume

4200*1200*2200

H.S Code 8441100000


>>> CNC Rotary Die Board Cutting Machine Features

1. Features :

Specially developed software can import your CAD designs of corrugated box, computer controls cutting drill on servo motors to do cutting job on rotary die board, exactly same as your design.

2. Cutting Unit:

It cuts with special drill. (one drill can cut several even more than 10 sets of dies)It is not laser.

3. Advantages:

Compared to Hand Cutting: higher accuracy, higher efficiency and perfect cutting.

Compared to Laser Cutting: low power consumption, low running cost, milling cutter consumption only, no need expensive air, no carbonization which results in better steel rule holding ability. More Environmental protection.

4. Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process.


>>> Rotary Bender Machine Details

zt (18)



zt (11)

>>> WT-RB Technical Parameters


Technical Parameters

                     Blade thickness (mm)


0.71(2pt)

1.05(3pt)

1.42(4pt)

  Blade height (mm)


22-28

22-28

22-28

Blade Diameter (mm)


220-800mm

220-800mm

220-800mm

Maximum bending angle


100

90

90

Minimum bending radius of 90 degrees (mm)


0.5

0.7

0.7

Minimum bending size of the front (mm)


2

2

2

Minimum bending size of the Rear (mm)


>2

>2

>2

Feeding Accuracy

0.02/200mm  Panasonic Server Motor And High Precision Screw guide

Bending Flatness

0.2/100mm  Panasonic Server Motor Combined with Japan Reducer

Bridge Mode

Automatic continuous bridge, bridge height adjustable(12—18mm) width (10-15mm) Gear Motor drive

Cutting Mode

Automatic cut-off (Automatic identification alarm and self Monitor)

   Lipping/ Miter Cutting

Auto Servor Depth control Server Motor Power Driven

              Perforation

Auto Servor Depth control Server Motor Power Driven

             Lean Cutting

Lean Cutting Makes Seemless joint

             Gap Cutting

Auto Teeth Gap Cutting For The Straight Rules

                Creasing

Auto Creasing Cutting For Rotary & Flat Rules and Big Head Rules

         Best Files format

DXF,DWG,AI,CDR,PLT

Pneumatic parts

Taiwan-- AirTag

               Weight 820kg

               Volume

1350*1260*1950

                 Power

8.5kw  220V/  50HZ








 >>> WT-RB Auto Bender Machine Features

1. WT Bending Machine With 11 Kits of Server Motor which Can process The Curved Rule from 220mm to 800mm. For Both Straight and curved Rule .Support With Zoom and unZoomed  design. NO need to worry about the design. Import Flat Design directly.

2. Automatic identificate Cutting direction, Cutting The Knife At any short you want.

3. Automatically adjust the height of the bridge.2-18 mm Width 8-20mm Auto.

4. No Noise Cutting and Bridging By Server  Motor With Reducer, No insufficient strength Or Blocking Knife.

5. WT Bend Machine Can Make Bridge Hole continusly, Continuous Working, No  Round-trip back to Make bridge.

6. WT Auto Bender Machine Has The Integrated Working(Select All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Creasing Rules)

7. WT Auto Bender Machine Has The Automatic alarm and Self Protect Function. When false operation and machine break down, The Machine Will Stop and Show the Error Code, You Can Check it easily.

8. All Parts of the Machine are produced by ourselves.  It is rather convenient to Maintain and Replace. All The Mold Of Bending machine are Maintained (regrinding)for free.

9. The Auto Bender Control System is developed by ourselves ,we promise it is free for any customer to update life time. Our Machine Also can bend the knife and cut the Creasing Rule at the same time(option function)

10.  The Shimpoo reducer is original imported from Japan.

11. English software, installation and related training instructions and videos are available for end-users.

12. In case of any problems or questions about  Laser Die Making  technology you can always refer to Worthy Tall.

13. With our customer-orientated service support, maintenance and repair costs will be kept low.



>>> Auto Bender Machine Details

Steel Rule Bender Machine

How to make steel rule dies by WT Die board laser cutting machine & Auto bender machine:
https://youtu.be/8F4ofe4ox5Y


>>> Machine Feature
Auto Bending ,Bridging , Cutting , Lipping, Broaching,Nicking,Perforation, Bending Notching with 0.45-3mm thick and 8-60mm high blade.
(Die board laser cutting machine for steel rule dies making)
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee

>>> Applicable materials and industries
Widely used in blade bending, package box and so on

>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately
2.Cutting-----automatical cutting, easy to cut  the steel rules
3.Bridging-----automatic bridging Width height adjusted atomatically.
4.Lipping-----automatic lipping
5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly
6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays
7.Broaching ----- Use Tungsten Broaching Saw Blade, Longer LifeTime.
8.Nicking ----- Use Tungsten Nicking Saw Blade, Longer LifeTime. Gap from 0.2mm to 0.8mm.
9.Perforation ----- Use Tungsten Saw Blade, Longer LifeTime.
10.Bending Notching ----- Automatic Bending Notching.
11.Software-----English Spanish Russian interface is easy to learn and operate
12. Trainning -----Complete training installation videos.

>>> WT11B Specification

Technical Parameters                      Blade thickness(mm)
0.45 0.53 0.71(2PT) 1.07(3PT) 1.42(4PT)
Blade height(mm) 8-25 8-25 23.8-60 23.8-60 23.8-60
Maximum bending angle 100 100 100 90 90
Minimum bending radius of 90 degrees(mm) 0.4 0.4 0.5 0.5 0.5
Minimum bending size of the front(mm) 1.0 1.0 1.5 1.5 1.5
Minimum bending size of the Rear(mm) >0 >0 >0 >0 >0
Feeding Accuracy

0.02/200mm  Panasonic Server Motor And High Precision Screw guide

Bending Flatness

0.2/100mm  Panasonic Server Motor Combined with Japan Reducer

Bridge Mode

Automatic continuous bridge, bridge height adjustable(15—18mm) width (5-10mm) Gear Motor drive

Cutting Mode

Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power

Lipping Mode

Automatic Lipping with Gear Server  drive Full Power

Nicking Mod

One Nicking  Size It is ok to change Saw Blade for different size

Rule Holding cases 6 Layers Rule Holder Elevator. Up Down Automatical

Pneumatic parts

Taiwan-- AirTag
Best Files format DXF, DWG, AI, CDR, PLT
Power 1.8kw  110V  220V / 50HZ  60HZ

Weight

520kg

Volume

2660*1150*1540


opf

packing
