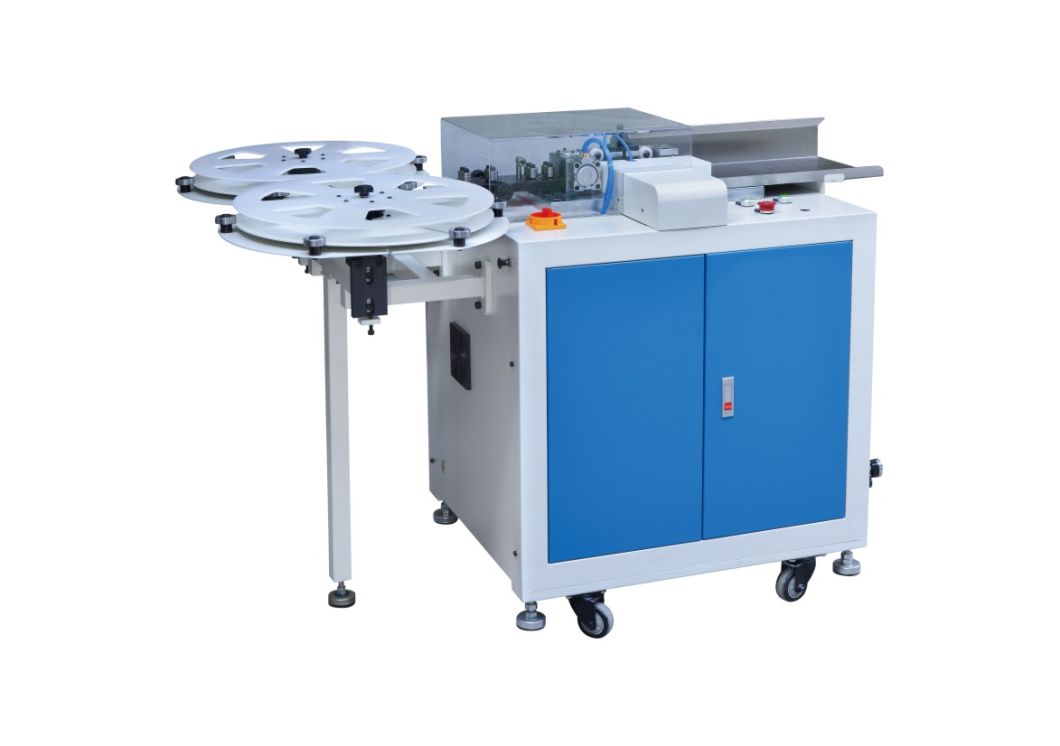

AUTO creasing Cutting Machine for die making
| Technical Parameters | Blade thickness(mm) |
| 0.71 (VK_QX_A) | 1.07(VK_QX_B) |
| Blade height(mm) | 23-24mm | 23-24mm |
| Maximum feeding speed | 30m/min |
| Feeding Accuracy | 0.03/300mm |
| Bridge Mode | - Automatic continuous Die Punch bridge, bridge height adjustable(15-18mm)Width(5-10mm) Gear Motor drive
|
| Cutting Mode | - Automatic Die Punch cut(Automatic identification alarm and self Monitor)Gear Motor Driven Full Power
|
| Rule Cassettes | - 2 Standard resistance -free rule cassettes
|
| Function/Advantages | - Connect to the computer of automatic bender machine without manual operation
- Intelligent cutting line program differential lengths of creasing line can be intelligently calculated according to differential over lap patterns,it is more convenience and time saving without manual operation. One key select lines by colour or layers. Automatically break off and shrink.
- Cut the arc line.
- Multi tasks :several groups of Creasing Lines can be finished simultaneously with high speed and Bridging and cutting can be done at same times,as well as Bending Rules with Auto bender machine
|
| Best Files format | DXF,DWG,AL,CDR,PLT |
| Weight | 230kg | Size | 1660*1150*1540 |
| Power | 110V 220V/50HZ 60HZ 500W |
| Air Pressure | 0.6-0.8Mpa |
| Warranty | 12 Month Mother Board Life Long Warranty |
Traning service
Training: The training is free of charge.You just meed to pay for the around tickets,food and hotel.The whole training will cost 7 days.
- We will dispatch our technician to your company to install the machine and train your technicians, The whole training lessons are including the machine and software.
- More ever we can Train You how to install the machine by Team viewer under our Engineers who is good at English and the machine.
Customized content
A.product range

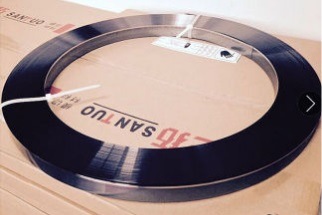

Flat&rotary die board,cutting rules,creasing rules,creasing matrix,anvil cover,doctor blade,manual die making machine,auto-bender machine.
sample making machine,nick grinder,trash-cleaning machine,folding gluer machine and so on. We are the general agent of Spanish polycut anvil cover and American Trupoint doctor blade in China.
B.our advantages
1.we are factory providing die making whole parts.
2.MOQ or NO MOQ
3.Delivery 7-30 days on time
4.Top quality guaranteed by skilled workers,managing system and status of facilities.
5.Advanced equipment.such as laser cutting machine,automatic bender machine.Sample making machine.etc.
6.Customized size and spec/OEM available
7.Near Ningbo and shanghai.convenient transpotation
8.With famous Grandcorp Brand and new YT brand
9.The general agent of Spanish polycut anvil cover and American Trupoint doctor blade in China
C.Better service
1.QC system 100% inspection before shipment
3.Packing standard package/pallet or container/As per customized

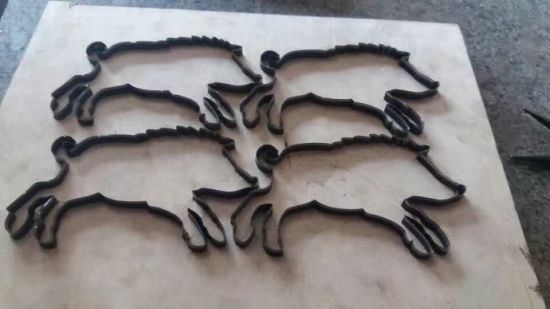

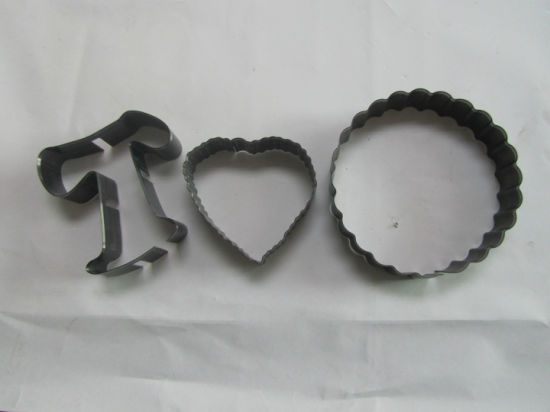

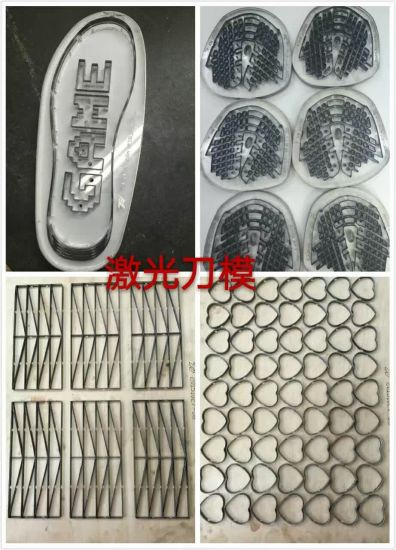

The picture for you reference
>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and 5 years engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Any more product information, please contact us !
Customer Needs is my Pursuit !
