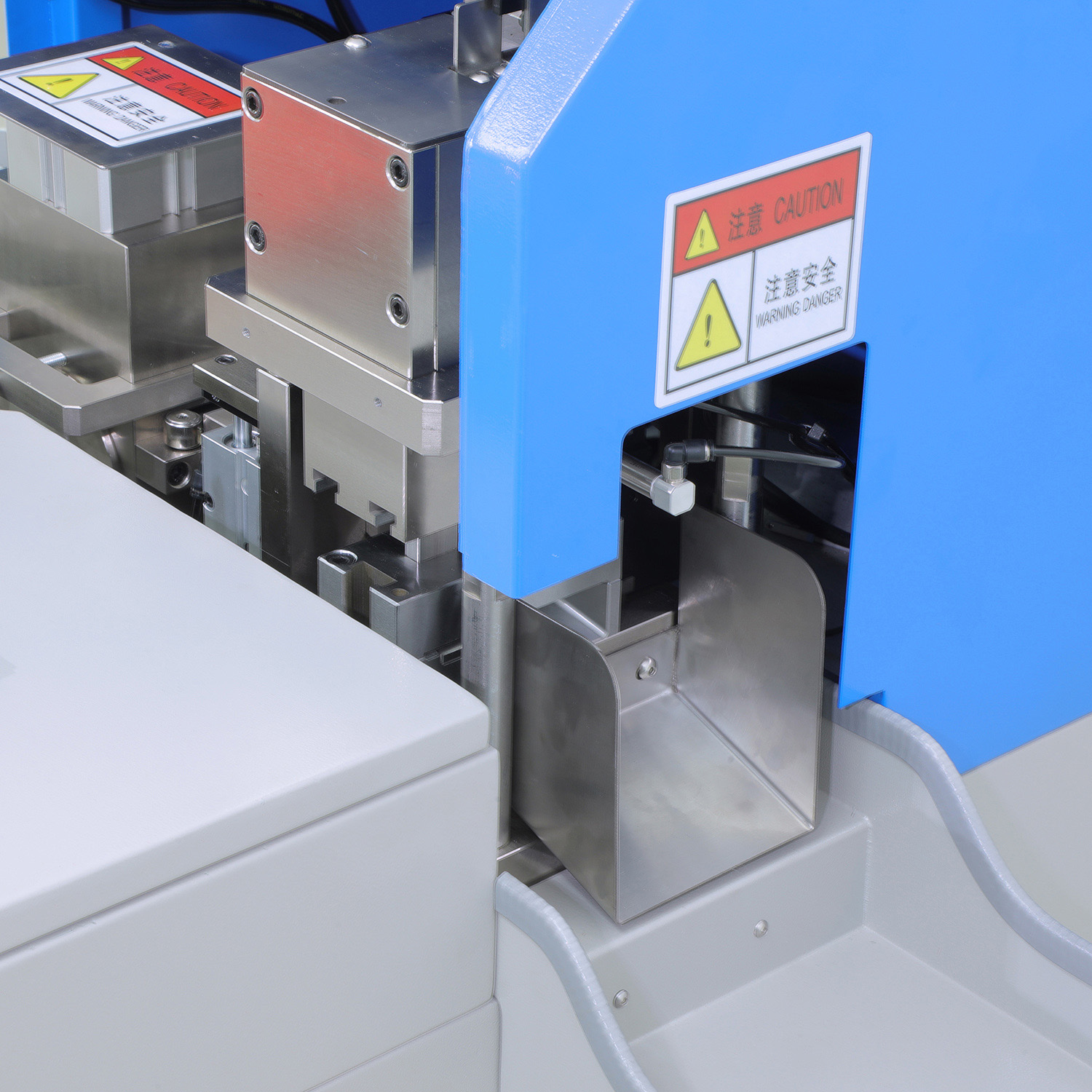

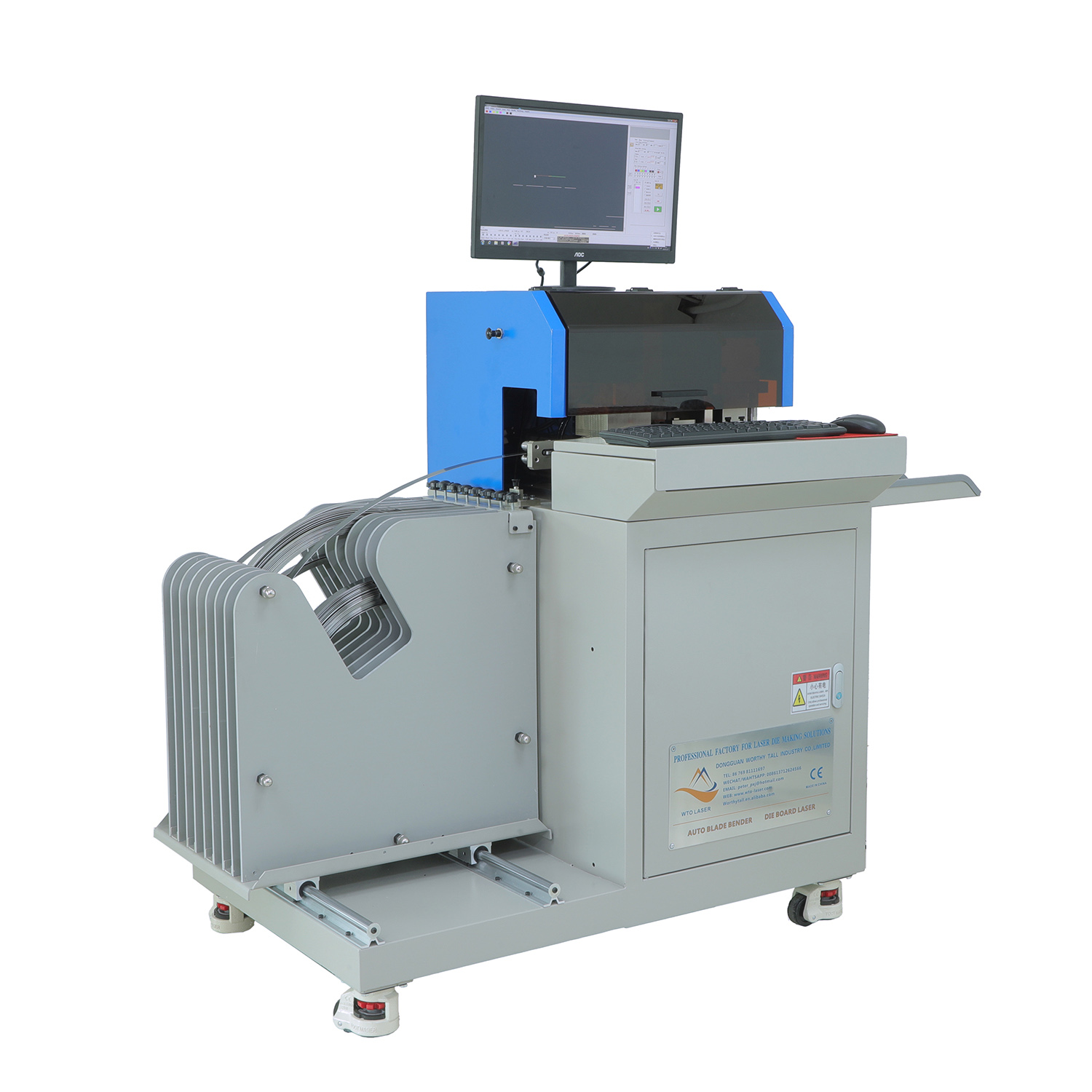

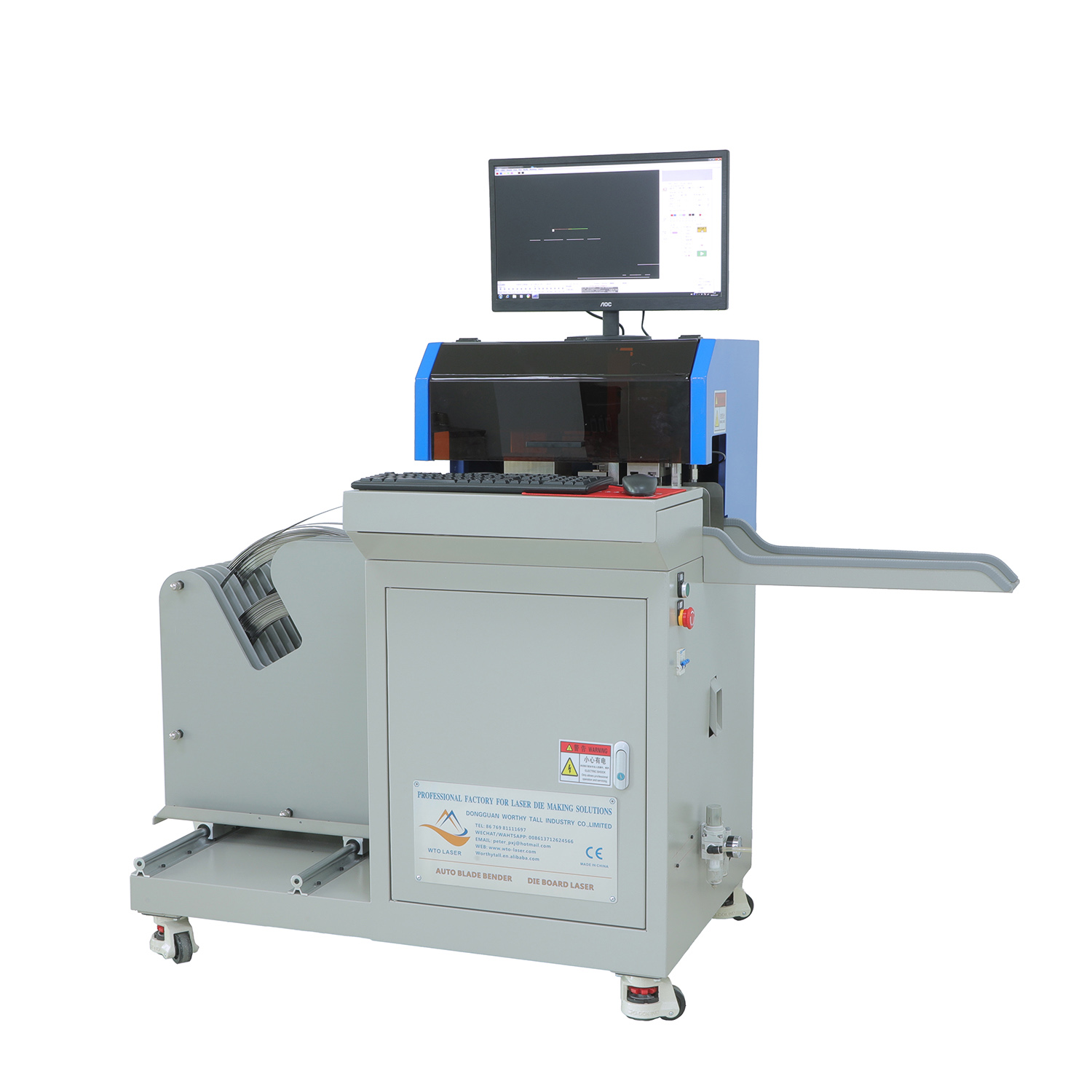

Auto Creasing Rule Creasing Line Cutting Machine For Die Cutting
Automatic creasing cutting machine for die making short die making.
| Size: | |
|---|---|
| Weight: | |
| Warranty: | |
| Quantity: | |
-
WT-QX
Steel Rule Auto Bender for Die Board Maker & Die Board Laser Cutting Machine For Die Making & Creasing Rule Cutting Machine
>>> Auto Creasing Cutting Machine Details
| Technical Parameters | Blade thickness(mm) | ||
| 0.71 (VK_QX_A) | 1.07-1.42(VK_QX_B) | ||
| Blade height(mm) | 23-24mm | 23-24mm | |
| Feeding Accuracy | 0.02/200mm Panasonic Server Motor And High Precision Screw guide | ||

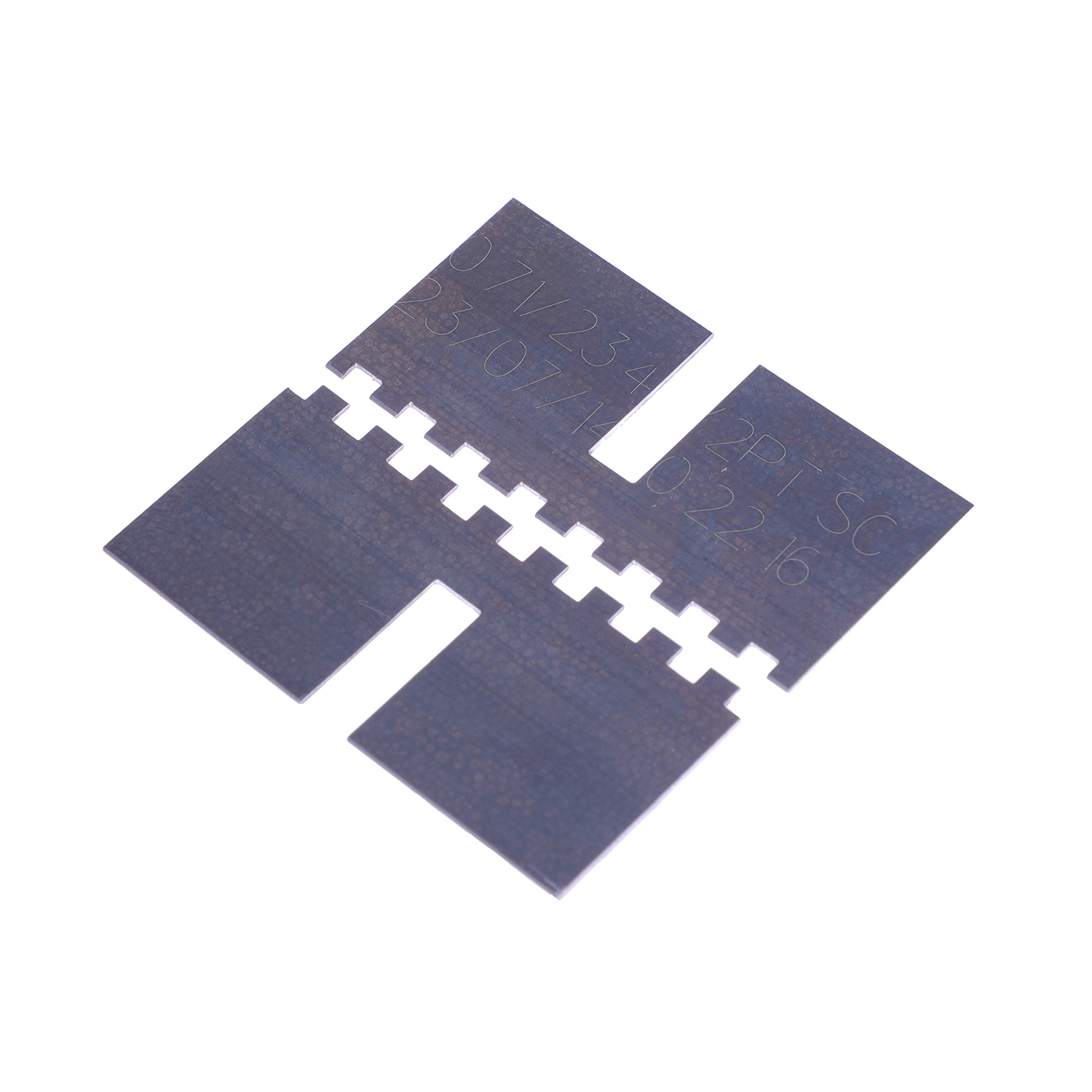

| Bridge Mode | Automatic continuous bridge, bridge height adjustable（15—18mm） width (5-10mm) Gear Motor drive | ||
| Cutting Mode | Automatic die punch cut(Automatic identification alarm and self Monitor)Gear Motor Driven Full Power | ||
| Rule Cassettes | 2 Standard resistance -free rule cassettes | ||
| Function/Advantages | Connect to the computer of automatic bender machine without manual operation Intelligent cutting line program differential lengths of creasing line can be intelligently calculated according to differential over lap patterns,it is more convenience and time saving without manual operation. One key select lines by colour or layers. Automatically break off and shrink. Cut the arc line. Multi tasks :several groups of creasing lines can be finished simultaneously with high speed and Bridging and cutting can be done at same times,as well as bending rules with auto bender machine. | ||
| Best Files format | DXF,DWG,AL,CDR,PLT | ||
| Weight | 280kg | Size | 1660*1150*1540 |
| Power | 110V 220V/50HZ 60HZ 1.8kw | ||
| Air Pressure | 0.6-0.8Mpa | ||
| Warranty | 12 month mother board life long warranty | ||
>>> Package & Shiping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
>>> Our Exibition 2018 Sino Packing Expo
>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and 5 years engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Any more product information, please contact us ! Customer Needs is my Pursuit !
