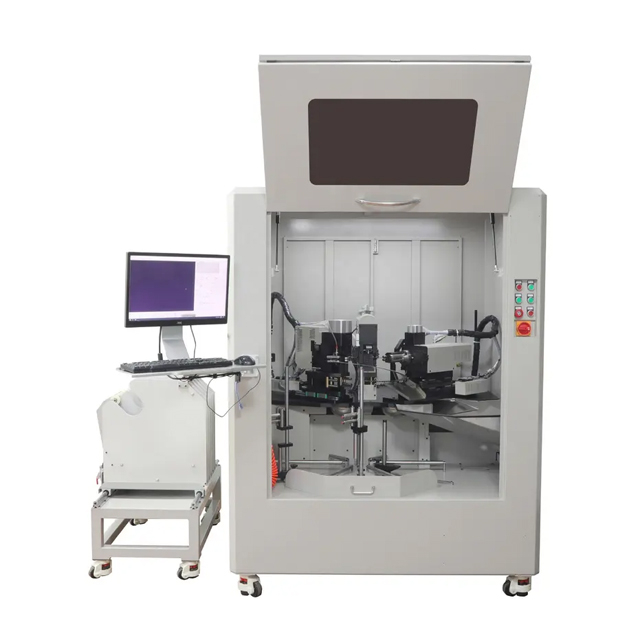

Auto Rotary Die Bender Machine For Corrugated Box Steel Rule Die Making
The newest WT bender,the WT-RB, adds a new dimension to rotary die bending through its multi-diameter adjustability. With the capability to bend rotary rule from 220 to 800 mm diameter, this machine provides die makers the flexibility and reliability needed in the rotary die board making industry.
| Size: | |
|---|---|
| Weigth: | |
| Blade Diameter: | |
| Quantity: | |
-
WT-RB
-
WT
-
8462219000
Steel Rule Auto Bender for Die Board Maker & Die Board Laser Cutting Machine For Die Making & Creasing Rule Cutting Machine
>>> Rotary Bender Machine Details
>>> WT-RB Technical Parameters
Technical Parameters | Blade thickness (mm) | |||||
0.71(2pt) | 1.05(3pt) | 1.42(4pt) | ||||
Blade height (mm) | 22-28 | 22-28 | 22-28 | |||
Blade Diameter (mm) | 220-800mm | 220-800mm | 220-800mm | |||
Maximum bending angle | 100 | 90 | 90 | |||
Minimum bending radius of 90 degrees (mm) | 0.5 | 0.7 | 0.7 | |||
Minimum bending size of the front (mm) | 2 | 2 | 2 | |||
Minimum bending size of the Rear (mm) | >2 | >2 | >2 | |||
Feeding Accuracy | 0.02/200mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm Panasonic Server Motor Combined with Japan Reducer | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(12—18mm) width (10-15mm) Gear Motor drive | |||||
Cutting Mode | Automatic cut-off (Automatic identification alarm and self Monitor) | |||||
Lipping/ Miter Cutting | Auto Servor Depth control Server Motor Power Driven | |||||
Perforation | Auto Servor Depth control Server Motor Power Driven | |||||
| Lean Cutting | Lean Cutting Makes Seemless joint | |||||
| Gap Cutting | Auto Teeth Gap Cutting For The Straight Rules | |||||
Creasing | Auto Creasing Cutting For Rotary & Flat Rules and Big Head Rules | |||||
Best Files format | DXF,DWG,AI,CDR,PLT | |||||
Pneumatic parts | Taiwan-- AirTag | |||||
| Weight | 820kg | |||||
Volume | 1350*1260*1950 | |||||
Power | 8.5kw 220V/ 50HZ | |||||
>>> WT-RB Auto Bender Machine Features
1. WT Bending Machine With 11 Kits of Server Motor which Can process The Curved Rule from 220mm to 800mm. For Both Straight and curved Rule .Support With Zoom and unZoomed design. NO need to worry about the design. Import Flat Design directly.
2. Automatic identificate Cutting direction, Cutting The Knife At any short you want.
3. Automatically adjust the height of the bridge.2-18 mm Width 8-20mm Auto.
4. No Noise Cutting and Bridging By Server Motor With Reducer, No insufficient strength Or Blocking Knife.
5. WT Bend Machine Can Make Bridge Hole continusly, Continuous Working, No Round-trip back to Make bridge.
6. WT Auto Bender Machine Has The Integrated Working(Select All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Creasing Rules)
7. WT Auto Bender Machine Has The Automatic alarm and Self Protect Function. When false operation and machine break down, The Machine Will Stop and Show the Error Code, You Can Check it easily.
8. All Parts of the Machine are produced by ourselves. It is rather convenient to Maintain and Replace. All The Mold Of Bending machine are Maintained (regrinding)for free.
9. The Auto Bender Control System is developed by ourselves ,we promise it is free for any customer to update life time. Our Machine Also can bend the knife and cut the Creasing Rule at the same time(option function)
10. The Shimpoo reducer is original imported from Japan.
11. English software, installation and related training instructions and videos are available for end-users.
12. In case of any problems or questions about Laser Die Making technology you can always refer to Worthy Tall.
13. With our customer-orientated service support, maintenance and repair costs will be kept low.
>>> Auto Bender Machine Details
How to make steel rule dies by WT Die board laser cutting machine & Auto bender machine:
https://youtu.be/8F4ofe4ox5Y
>>> Machine Feature
Auto Bending ,Bridging , Cutting , Lipping, Broaching,Nicking,Perforation, Bending Notching with 0.45-3mm thick and 8-60mm high blade.
(Die board laser cutting machine for steel rule dies making)
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee
>>> Applicable materials and industries
Widely used in blade bending, package box and so on
>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately
2.Cutting-----automatical cutting, easy to cut the steel rules
3.Bridging-----automatic bridging Width height adjusted atomatically.
4.Lipping-----automatic lipping
5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly
6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays
7.Broaching ----- Use Tungsten Broaching Saw Blade, Longer LifeTime.
8.Nicking ----- Use Tungsten Nicking Saw Blade, Longer LifeTime. Gap from 0.2mm to 0.8mm.
9.Perforation ----- Use Tungsten Saw Blade, Longer LifeTime.
10.Bending Notching ----- Automatic Bending Notching.
11.Software-----English Spanish Russian interface is easy to learn and operate
12. Trainning -----Complete training installation videos.
>>> WT11B Specification
>>> Die Board Laser Cutting Machine Details1,400W 600W can be a single head laser cutting die cutting machine cutting 18mm and 22mm board laser cutter template,6-9mm PVC rubber sheet(add oxygen can cut iron plate ,stainless steel,13mm can do blister knife template ,high efficiency ,uniform kerf ,consistent ,the precision error is less than 0.1mm. Maintenance is simple. Do not need gas. Equipment structure is compact .Need small area to install it. The cabinets are made of high quality cold-rolled steel plate,An external power source 220V. and low cost. Technology of simple knife adjustment ,cutting software and AutoCAD ,CorelDraw, Adobe Photoshop can compatible edit the path manual operation. maintenance cost is low. greatly saves the production cost of laser cutting die.
2,Adopt the most advanced 400W 600W C02 sealing type water-cooled laser tube combined with precision up to 0.05mm of numerical control mechanical systems. Not only Get The precision of laser die making, But also reduce the costs of laser die making. Suitable for wooden board laser die cutting and precision electronic laser die making. Adopt gantry structure ,to avoid the optical path deviation size problem that high power laser machine has.
3,Do not need to add any auxiliary gas to cut, laser cutting die consumption is extremely low. an external power source 220V is ok. And no opening preparation delay. The cutting costs is only 5 RMB/Hour
4,Can do one-time cutting 1mm-22mm wooden board, Plastic board, organic glass, Acrylic board at speed of 25-30m/h. And the machine can cut the gap at 0.45mm, 0.71mm, 1.07mm, 1.42mm and so on at uniform cutting kerf width also up and down seam.
>>>Die Making Manual Machine Details
Manual Die board tools are widely use in plywood die board making factory and die board making work shop.That is good as assistant tools after you buy our blades bending machine for make plywood die board.Also we can provide series of dies for board maker industry machinery.
>>>Why Choose Us？
⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.
⊙ English software, installation and related training instructions and videos are available for end-users.
⊙ In case of any problems or questions about Laser Die Making technology you can always referto Worthy Tall.
⊙ With our customer-orientated service support, maintenance and repair costs will be kept low.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
