WT-LC1325
WT
8456110090

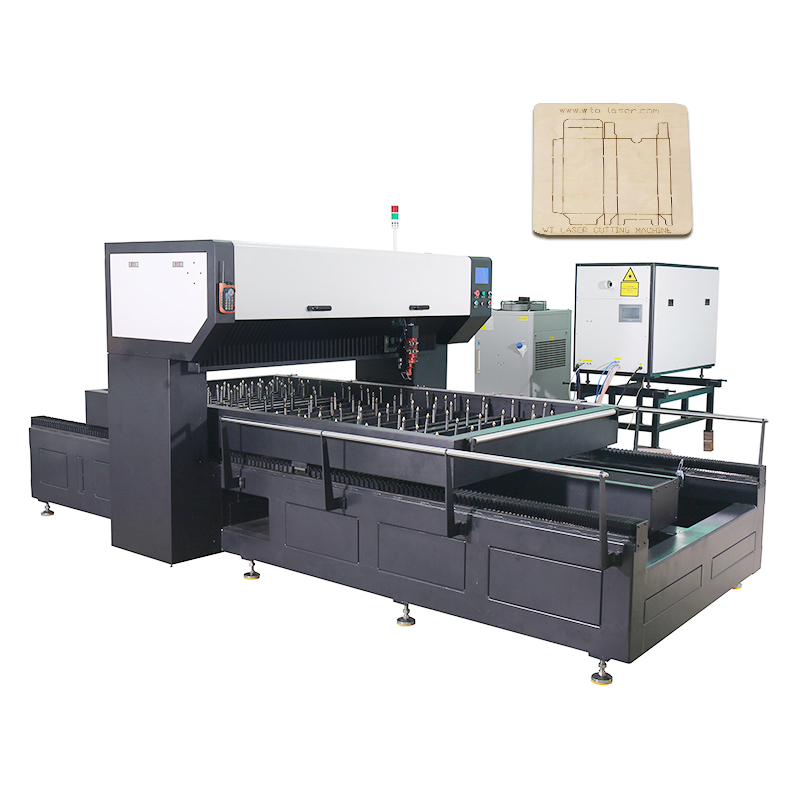

Steel Rule Auto Bender for Die Board Maker & Die Board Laser Cutting Machine For Die Making & Creasing Rule Cutting Machine
>>> WT-LC1250-2500 1500W Die Board Laser Cutting Machine
>>> Machine Features
● Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.
● Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
● Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
● Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
● Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
● Software is easy to operate, simple and easy to understand
● Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
● Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
>>> Laser Cutting Machine Operating Environment Request
● Floor Space/Occupied Area: Length 8Meters Width 5Meters around 40 square meters
● Air-Condition One Set for Laser Generator
● High Requirement Of Foundation: Concrete Foundation, Flat, strong and stable.
>>> Assistant Equipment Request to run the Laser Cutting Machine
● Air Compressor One Set (Power 5KW or 7.5KW 10HP, match with 0.6MPA gasholder )
● Freezer Dryer One Set (Assistant to be used with Air Compressor)
● 30KW Voltage Stabilizer One Set ( Can be used for both laser and bender machine together)
>>> Assistant using Gas and Liquid
● Assistant using Gas: CO2, He, N2 and O2 (for cutting iron board sheet)
● Liquid: Purified Water
>>> Applications
It'swidely used inprinting, package, die making, advertising signs, metal plates…etc. industries.
>>> Applicable materials
Plywood, MDF board, acrylic, iron board, steel board, stainless steel board…etc. metal and non-metal materials.
>>> After-sales service
English-speaking engineer is available for installation and training under buy's cost around 5days.
English software, installation and related training instructions and videos are available for end-users.
In case of any problems or questions about laser technology you can always refer to WT Laser.
With our customer-orientated service support, maintenance and repair costs will be kept low.
One year guarantee for machine is promised.
>>>Technical Parameters
Laser output power | 1500Watts axial flow CO2 laser source |
X-axis travel-length | 1300mm |
Y-axis travel-length | 2500mm |
Cutting precision | ±0.05mm |
Re-Positioning Precision | ≤0.02mm |
Cutting width | 0.45mm, 0.71mm, 1.05/1.07mm at one line (die board) |
Average. cutting speed | 80-100meters/hour for 18mm plywood |
Controlling system | PMAC Motion card PMAC |
Transmission system | Ball screw & Linear guide |
Driving system | 3 Axial Servo |
Optical system | Semi-optical |
Moving structure | Gantry |
Chiller system | Special Chiller system for laser generator system |
Machine table whole sizes. | 3500mm*2500mm*2000mm (1300x2500mm) |
Laser generator size 1500W | L1950 * W850 * H1350MM 800KGS |
G. Weight | 2000KGS/2500KGS |
Voltage (Working table) | Single Phrase 220V 50Hz |
Voltage (Laser generator) | 3 Phrase 380V/50Hz/30A |
Pressure of accessory air source | 0.8Mpa |
Laser generator gas matched | He, N2, CO2(99.99%) |
H.S. Code | 8456110090 |
Standard Configuration of 1000W laser cutting machine | |||
No. | Name | Model | Quantity |
1 | 1000W/1500W axial laser generator | NT1500SM | 1 |
2 | working table | 1300*2500MM | 1 |
3 | Laser Cutting software | CypCut | 1 |
4 | Industrial chiller for laser generator | CW-7500 EN 460H | 1 |
5 | Industrial chiller for working table | CW-5000 AIS | 1 |
6 | Exhaust fan 1100w | CZR105E-11 | 1 |
7 | Exhaust fan 750w | CZR90-7 | 1 |
8 | Air dryer 1.5m³/min | ND-10AA | 1 |
9 | Voltage stabilizer 30KVA | PH-330 | 1 |
10 | Panasonic AC Servo motor 1.5KW | MHME152GCGM | 1 |
11 | Panasonic AC Servo motor 3KW | 1 | |
12 | Panasonic AC Servo motor 0.4KW | MHMJ042G1U | 1 |
13 | HIWIN Screw R32 | R32-10T3-FSI-2025-2186-0.05 | 2 |
14 | HIWIN Screw R25 | R25-10T3-FSI-1411-1539-0.05 | 2 |
15 | HIWIN Linear Guide Rail 40 | HCH40CA2R1610Z0C | 1 |
16 | HIWIN Linear Guide Rail 30 | HCH30CA2R2960Z0C | 1 |
17 | II-VI Lens | 38.1mm DIA 190.5mm FL | 1 |
18 | II-VI Reflector | 50mm DIA 10mm THK | 1 |
19 | II-VI CPL Filter | 50.0mm DIA 10.0mm THK | 1 |
20 | Computer & Monitor | Windows 7 | 1 |
1000W Laser Generator Key Components | ||||
No. | Name | Manufacturer | Country | |
1 | ROOT`S PUMP | 1000W | NB600AL | JAPAN |
2 | LOW VOLTAGE CONTROL CIRCUIT APPARATUS | SIEMENS | GERMANY | |
IDEC | JAPAN | |||
SCHNEIDER | GERMANY | |||
PHOENIX CONTACT | GERMANY | |||
3 | RESONANT CAVITY OPTICS SYSTEM | II-VI | USA | |
4 | COMPUTER OPERATING SYSTEM | DELTA | TAIWAN | |
5 | PNEUMATIC COMPONENT | FESTO | GERMANY | |
SMC | JAPAN | |||
CAMOZZI | ITALY | |||
6 | SWITCH POWER SUPPLY | SEMIKRON | JAPAN | |
CONTROL MODULE | ||||
7 | WATER PATH COMPONENT | SMC | JAPAN | |
CAMOZZI | ITALY | |||
8 | LASER POWER SENSOR | GENTEC-E | CANADA |
>>> Auto Bender Machine Details
How to make steel rule dies by WT Die board laser cutting machine & Auto bender machine:
https://youtu.be/8F4ofe4ox5Y
>>> Machine Feature
Auto Bending ,Bridging , Cutting , Lipping, Broaching,Nicking,Perforation, Bending Notching with 0.45-3mm thick and 8-60mm high blade.
(Die board laser cutting machine for steel rule dies making)
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee
>>> Applicable materials and industries
Widely used in blade bending, package box and so on
>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately
2.Cutting-----automatical cutting, easy to cut the steel rules
3.Bridging-----automatic bridging Width height adjusted atomatically.
4.Lipping-----automatic lipping
5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly
6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays
7.Broaching ----- Use Tungsten Broaching Saw Blade, Longer LifeTime.
8.Nicking ----- Use Tungsten Nicking Saw Blade, Longer LifeTime. Gap from 0.2mm to 0.8mm.
9.Perforation ----- Use Tungsten Saw Blade, Longer LifeTime.
10.Bending Notching ----- Automatic Bending Notching.
11.Software-----English Spanish Russian interface is easy to learn and operate
12. Trainning -----Complete training installation videos.
>>> WT11B Specification
Technical Parameters | Blade thickness(mm) | |||||
0.45 | 0.53 | 0.71(2PT) | 1.07(3PT) | 1.42(4PT) | ||
Blade height(mm) | 8-25 | 8-25 | 23.8-60 | 23.8-60 | 23.8-60 | |
Maximum bending angle | 100 | 100 | 100 | 90 | 90 | |
Minimum bending radius of 90 degrees(mm) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
Minimum bending size of the front(mm) | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 | |
Minimum bending size of the Rear(mm) | >0 | >0 | >0 | >0 | >0 | |
Feeding Accuracy | 0.02/200mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm Panasonic Server Motor Combined with Japan Reducer | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(15—18mm) width (5-10mm) Gear Motor drive | |||||
Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power | |||||
Lipping Mode | Automatic Lipping with Gear Server drive Full Power | |||||
Nicking Mod | One Nicking Size It is ok to change Saw Blade for different size | |||||
Rule Holding cases | 6 Layers Rule Holder Elevator. Up Down Automatical | |||||
Pneumatic parts | Taiwan-- AirTag | |||||
Best Files format | DXF, DWG, AI, CDR, PLT | |||||
Power | 1.8kw 110V 220V / 50HZ 60HZ | |||||
Weight | 520kg | |||||
Volume | 2660*1150*1540 |
>>>Die Making Manual Machine Details
Manual Die board tools are widely use in plywood die board making factory and die board making work shop.That is good as assistant tools after you buy our blades bending machine for make plywood die board.Also we can provide series of dies for board maker industry machinery.
>>>Why Choose Us?
⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.
⊙ English software, installation and related training instructions and videos are available for end-users.
⊙ In case of any problems or questions about Laser Die Making technology you can always referto Worthy Tall.
⊙ With our customer-orientated service support, maintenance and repair costs will be kept low.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
>>> Our other SNS contact
https://worthytall.en.made-in-china.com
