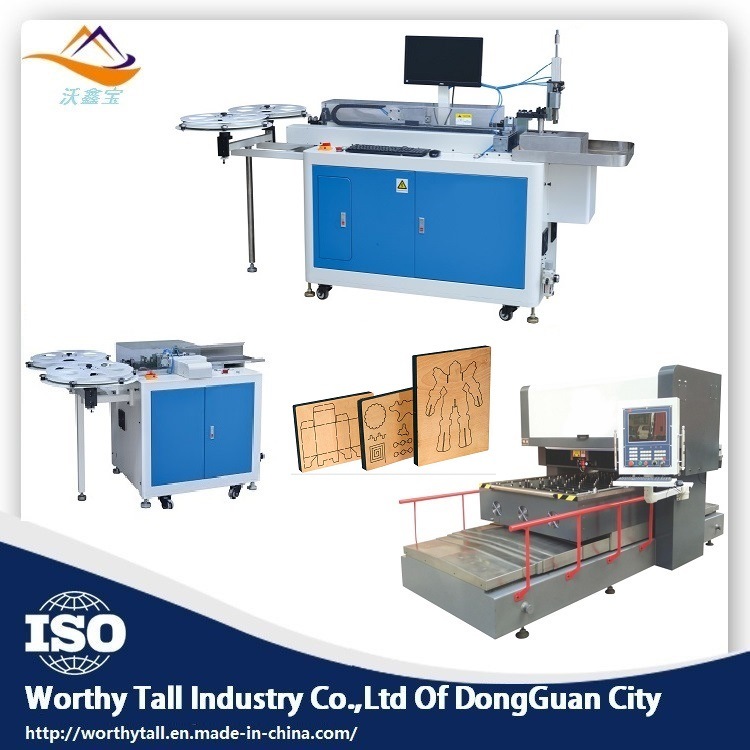

Auto Die Blade Bending Machine

Quantity:
  • WT06

  • Bending Bridging Cutting Lipping Broaching

  • 0.45/0.53/0.71/1.05/1.42mm

  • 0.03mm

  • Dxf Dwg Ai Coredraw Plt

  • Worthy Tall

  • Compound Wooden Cases with Exporting Standard

  • 2700*1150*1540

  • Dongguan City China Prc

  • 8462219000

Auto Die Blade Bending Machine


>>> Machine Feature

Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee


WT10 specifications:
Technical Parameters Blade thickness(mm)
0.45-0.71
Blade height(mm) 8-32
Maximum bending angle 110
Minimum bending radius of 90 degrees(mm) 0.15
Minimum bending size of the front(mm) 1.5
Minimum bending size of the Rear(mm) 0.5
Feeding Accuracy 0.03/300mm Panasonic Server Motor And High Precision Screw guide
Bending Flatness 0.2/100mm
Bridge Mode Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive
Cutting Mode Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machine
Broaching Double Broaching 'V'shape,Automatic control Broaching depth. Sharp Corners more standard,Small arc finer
Best Files format DXF,DWG,AI,CDR,PLT
Weight 620kg volume 2805*1025*1470
Total power 2kw 110V 220V/ 60HZ 50HZ

>>> Applicable materials and industries
Widely used in blade bending, package box and so on

>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately

2.Cutting-----automatical cutting, easy to cut the steel rules

3.Bridging-----automatic bridging

4.Lipping-----automatic lipping

5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly

6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays

7.Software-----Self Develop English interface is easy to learn and operate


>>> Products Pictures
Auto Die Blade Bending Machine

Auto Die Blade Bending Machine
Auto Die Blade Bending Machine




>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.


>>> Our Exibition 2018 Sino Packing Expo
Auto Die Blade Bending Machine



>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and 5 years engineering service.


Why Choose Us:
⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.

>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?


Auto Die Blade Bending Machine

Any more product information, please contact us ! Customer Needs is my Pursuit !
