WT11

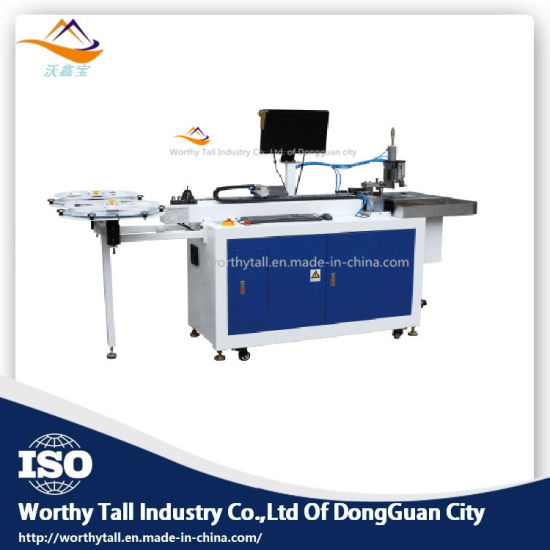

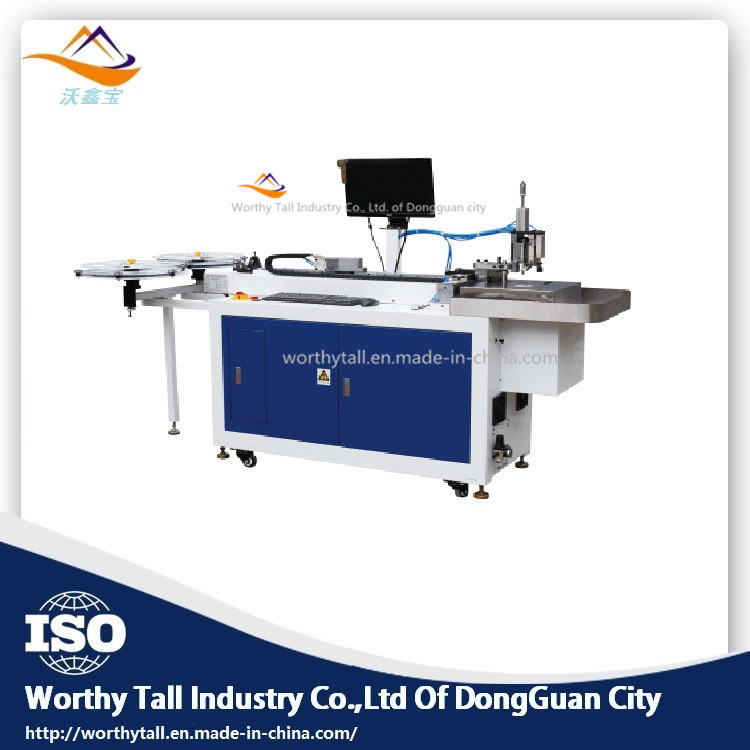

Cnc Bending Machine
110mm
Minimum Bending Size of The Rear(mm): >0
±0.03/300mm
±0.2/100mm
Auto Continuous Bridge,Gear Motor Drive,Low Noise
Dxf.Dwg.Ai.CDR.Plt
620kg
2kw 110V 220V / 60Hz 50Hz
Warranty 12 Month
Bending Bridging Cuting Lipping Broaching Gringdi
WT
Export Standard Wooden Case
2805× 1025× 1470mm
Dongguan City China Prc
8462219000
Technical Parameters | Blade thickness(mm) | |||||
0.45 | 0.53 | 0.71(2PT) | 1.07(3PT) | 1.42(4PT) | ||
Blade height(mm) | 8-25 | 8-25 | 8-30 | 8-40 | 8-60 | |
Maximum bending angle | 100 | 100 | 100 | 100 | 100 | |
Minimum bending radius of 90 degrees(mm) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
Minimum bending size of the front(mm) | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 | |
Minimum bending size of the Rear(mm) | >0 | >0 | >0 | >0 | >0 | |
Feeding Accuracy | 0.03/300mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive | |||||
Cutting Mode Lipping Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machine Automatic continuous lipping | |||||
Best Files format | DXF,DWG,AI,CDR,PLT | |||||
Weight | 620kg | volume | 2660*1150*1540 | |||
Power | 1.8kw 110V 220V / 50HZ 60HZ |
Technical Parameters | Blade thickness(mm) | |||||
0.45 | 0.53 | 0.71(2PT) | 1.07(3PT) | 1.42(4PT) | ||
Blade height(mm) | 8-25 | 8-25 | 8-30 | 8-40 | 8-60 | |
Maximum bending angle | 100 | 100 | 100 | 100 | 100 | |
Minimum bending radius of 90 degrees(mm) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
Minimum bending size of the front(mm) | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 | |
Minimum bending size of the Rear(mm) | >0 | >0 | >0 | >0 | >0 | |
Feeding Accuracy | 0.03/300mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive | |||||
Cutting Mode Lipping Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machine Automatic continuous lipping | |||||
Best Files format | DXF,DWG,AI,CDR,PLT | |||||
Weight | 620kg | volume | 2660*1150*1540 | |||
Power | 1.8kw 110V 220V / 50HZ 60HZ |
