Die Board Laser Cutting Machine for Die Cutting
| Quantity: | |
|---|---|
-
WT09
-
Paper Packaging Materials
-
110°
-
Minimum Bending Size of The Rear(mm): >0
-
±0.03/300mm
-
±0.2/100mm
-
Auto Continuous Bridge,Gear Motor Drive,Low Noise
-
Dcf,Dwg,Ai,CDR,Plt
-
620kg
-
1.8kw 110V 220V / 60Hz 50Hz
-
Warranty 12 Month
-
WT
-
Export Standard Wooden Case
-
3125× 1025× 1470mm
-
Dongguan City China Prc
-
8462219000
Specifications:
| Name | Type And Brand | Note | |
| 1, Laser source part | |||
| 1 | Laser source | SLZ | SunTop |
| 2 | Lens | II VI | USA |
| 2, Machine Parts | |||
| 3 | Screw Guider | TBI | TAI WAN |
| 4 | Turning Mirror | II VI Ф50mm | USA |
| 5 | Focus Len | II VI Ф38.1 mm | USA |
| 6 | Server Motor | FEI LI MEI | TAI WAN |
| 7 | Control System | SYNTEC CNC SYSTEM | TAI WAN |
| 8 | Induced Draft Fan | 2.2KW | |
| 9 | Reducer | Shimpo | Japan |
| 10 | Chiller | China | |
| 11 | Lubrication system | Auto Lubrication | |
12 | Flat die travel distance | WTPM2512 | 2450x1250mm |
| Flat die Pointing Accuracy | ±0.03 mm | ||
| Flat die Max Idle Speed | 12m/min | ||
| Size | 8500x5500x1800mm | ||
13 | Flat die travel distance | WTPB2512 | 2450x1250mm |
| Flat die Pointing Accuracy | ±0.01 mm | ||
| Flat die Max Idle Speed | 12m/min | ||
| Size | 8500x5500x2200mm | ||
14 | Rotate die travel distance | WTYH8019 | D800x3000mm |
| Rotate die Pointing Accuracy | ±0.1 mm/1000mm | ||
| Rotate die Max Idle Speed | 10m/min | ||
| Size | 8500x1500x2200mm | ||
| 15 | Flat And Rotate Die Machine Size | WTPB2512& WTYH8019 | 8500x7500x2200mm |
| 16 | Voltage | 380V±5% | |
17 | Laser Source Power 1000 W | 15KW Electricity | 1.1m/min Cutting Speed (±10%) |
| Laser Source Power 1500 W | 18KW Electricity | 1.7m/min Cutting Speed (±10%) | |
| Laser Source Power 2000 W | 21KW Electricity | 2.4m/min Cutting Speed (±10%) | |
| 18 | Laser Gas Mixture | CO2:N2:He is 3%:30%:67%,Gas purity 99.999% | |
| 19 | Protective Gas | N2 | Gas purity 99.999% |
| 20 | Auxiliary gas for cutting iron | O2 | cutting iron |
| 3, Auxiliary Parts Added by Customers | |||
| 21 | Air Compressor | Capacity is greater than 1 cubic | |
| 22 | Air Dryer | Capacity is greater than 1 cubic | |
| 23 | Voltage Stabilizer | 50KW | |
| 24 | Air Vessel | No less than 0.6 cubic | |
| 4, Whole Machine Structure | |||
| 25 | Machine Frame | High and slight structural steel | WT |
Attached:
1. Characters Of Flat And Rotate Die Laser Cutting Machine:
1,Self Develop Laser Source And Machine Structure The whole machine is stable and reliable.
2,10 years of professional experience in the production of large laser equipment, providing sound technology, timely service and long-term protection.
3,Using a unique hybrid laser gas and standby mode, the cost is 2/3 of similar products, energy saving.
4,Machine adopts high-strength structural steel, and use quenching to stress process, to ensure long-term operation without distortion.
5,Laser cutting head with induction servo system to ensure that the cutting gap is not affected by the uneven plate; cutting process can change the width of the cutting gap (servo adjustment system) without stop the machine.
6,Laser cutting head with anti-collision function.
7,Up to three different width cuts can be cut on the same die board.
8,Unique centralized dust removal device, so that the smoke generated during cutting, dust emissions are timely and effective removed, to make the processing environment cleaner.
9,Machine with pneumatic tightening function, the cutting plate will not move.
10,The machine with the cutting board input function, so easy to load the board, The cutting board will not be scratched platform thimble wood.
11,The CNC system without any restrictions from the WINDOWS version. Using network cable to connect equipment, will not happen files lost, computer virus infection or board card system can not find the hardware .
12,Rotate Die Machine Use Eccentric shaft structure design. The shaft will not be directly burned when laser is cutting, to ensure long-term high-intensity operation without deformation. to avoid the same kind of coaxial products from other factory burning defects long-term defects.
13,Rotate Die support part of the rail can be freely sliding, as required, to ensure cutting accuracy.
14,Rotate And Flat machine use of split (two machine using a separate system), Machine works more stable and reliable.
2. Pictures of Flat and rotate Laser Cutting Machine:

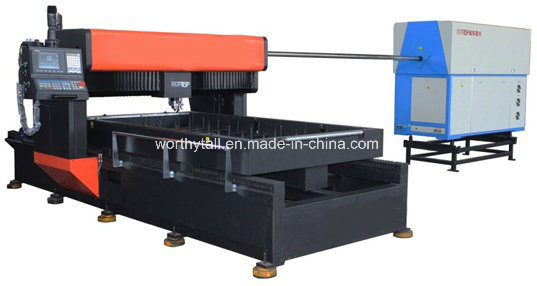

1, WTPM2512 Economic CNC Laser Cutting Machine

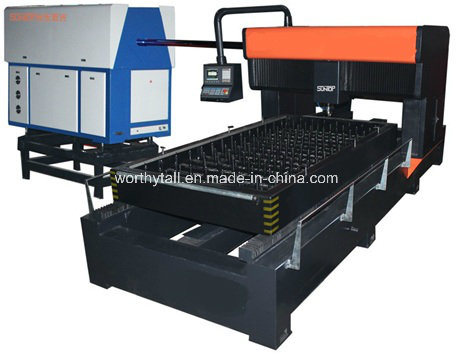

2,WTPB2512 High Precision CNC Laser Cutting Machine
Note :Ground flatness ±10mm.

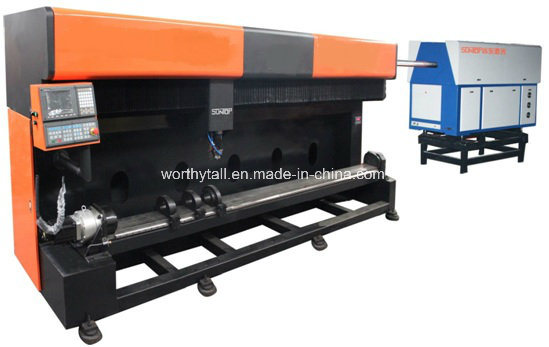

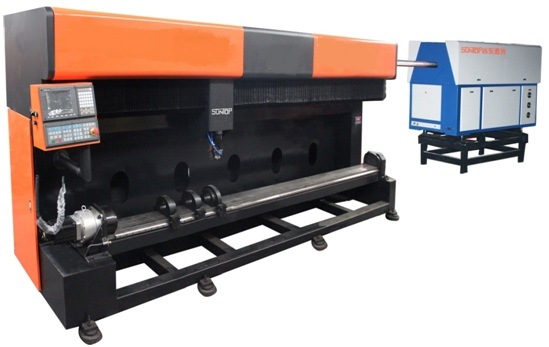

3, WTYH8019 Rotate Die CNC Laser Cutting Machine
Note :Ground flatness ±10mm.

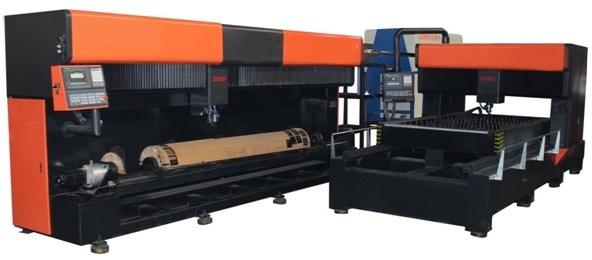

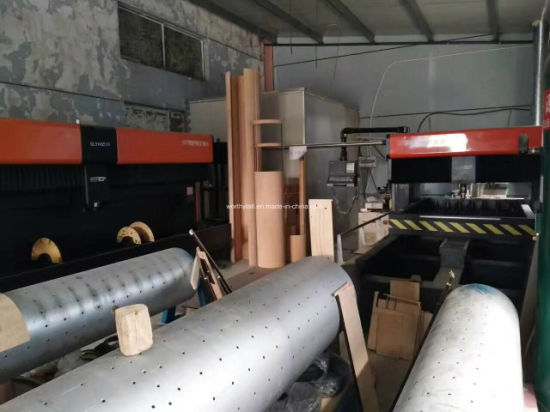

4, WTPB2512&WTYH8019 Flat And Rotate Die CNC Laser Cutting Machine
Note :Ground flatness ±10mm.
Specifications:
| Name | Type And Brand | Note | |
| 1, Laser source part | |||
| 1 | Laser source | SLZ | SunTop |
| 2 | Lens | II VI | USA |
| 2, Machine Parts | |||
| 3 | Screw Guider | TBI | TAI WAN |
| 4 | Turning Mirror | II VI Ф50mm | USA |
| 5 | Focus Len | II VI Ф38.1 mm | USA |
| 6 | Server Motor | FEI LI MEI | TAI WAN |
| 7 | Control System | SYNTEC CNC SYSTEM | TAI WAN |
| 8 | Induced Draft Fan | 2.2KW | |
| 9 | Reducer | Shimpo | Japan |
| 10 | Chiller | China | |
| 11 | Lubrication system | Auto Lubrication | |
12 | Flat die travel distance | WTPM2512 | 2450x1250mm |
| Flat die Pointing Accuracy | ±0.03 mm | ||
| Flat die Max Idle Speed | 12m/min | ||
| Size | 8500x5500x1800mm | ||
13 | Flat die travel distance | WTPB2512 | 2450x1250mm |
| Flat die Pointing Accuracy | ±0.01 mm | ||
| Flat die Max Idle Speed | 12m/min | ||
| Size | 8500x5500x2200mm | ||
14 | Rotate die travel distance | WTYH8019 | D800x3000mm |
| Rotate die Pointing Accuracy | ±0.1 mm/1000mm | ||
| Rotate die Max Idle Speed | 10m/min | ||
| Size | 8500x1500x2200mm | ||
| 15 | Flat And Rotate Die Machine Size | WTPB2512& WTYH8019 | 8500x7500x2200mm |
| 16 | Voltage | 380V±5% | |
17 | Laser Source Power 1000 W | 15KW Electricity | 1.1m/min Cutting Speed (±10%) |
| Laser Source Power 1500 W | 18KW Electricity | 1.7m/min Cutting Speed (±10%) | |
| Laser Source Power 2000 W | 21KW Electricity | 2.4m/min Cutting Speed (±10%) | |
| 18 | Laser Gas Mixture | CO2:N2:He is 3%:30%:67%,Gas purity 99.999% | |
| 19 | Protective Gas | N2 | Gas purity 99.999% |
| 20 | Auxiliary gas for cutting iron | O2 | cutting iron |
| 3, Auxiliary Parts Added by Customers | |||
| 21 | Air Compressor | Capacity is greater than 1 cubic | |
| 22 | Air Dryer | Capacity is greater than 1 cubic | |
| 23 | Voltage Stabilizer | 50KW | |
| 24 | Air Vessel | No less than 0.6 cubic | |
| 4, Whole Machine Structure | |||
| 25 | Machine Frame | High and slight structural steel | WT |
Attached:
1. Characters Of Flat And Rotate Die Laser Cutting Machine:
1,Self Develop Laser Source And Machine Structure The whole machine is stable and reliable.
2,10 years of professional experience in the production of large laser equipment, providing sound technology, timely service and long-term protection.
3,Using a unique hybrid laser gas and standby mode, the cost is 2/3 of similar products, energy saving.
4,Machine adopts high-strength structural steel, and use quenching to stress process, to ensure long-term operation without distortion.
5,Laser cutting head with induction servo system to ensure that the cutting gap is not affected by the uneven plate; cutting process can change the width of the cutting gap (servo adjustment system) without stop the machine.
6,Laser cutting head with anti-collision function.
7,Up to three different width cuts can be cut on the same die board.
8,Unique centralized dust removal device, so that the smoke generated during cutting, dust emissions are timely and effective removed, to make the processing environment cleaner.
9,Machine with pneumatic tightening function, the cutting plate will not move.
10,The machine with the cutting board input function, so easy to load the board, The cutting board will not be scratched platform thimble wood.
11,The CNC system without any restrictions from the WINDOWS version. Using network cable to connect equipment, will not happen files lost, computer virus infection or board card system can not find the hardware .
12,Rotate Die Machine Use Eccentric shaft structure design. The shaft will not be directly burned when laser is cutting, to ensure long-term high-intensity operation without deformation. to avoid the same kind of coaxial products from other factory burning defects long-term defects.
13,Rotate Die support part of the rail can be freely sliding, as required, to ensure cutting accuracy.
14,Rotate And Flat machine use of split (two machine using a separate system), Machine works more stable and reliable.
2. Pictures of Flat and rotate Laser Cutting Machine:
1, WTPM2512 Economic CNC Laser Cutting Machine
2,WTPB2512 High Precision CNC Laser Cutting Machine
Note :Ground flatness ±10mm.
3, WTYH8019 Rotate Die CNC Laser Cutting Machine
Note :Ground flatness ±10mm.
4, WTPB2512&WTYH8019 Flat And Rotate Die CNC Laser Cutting Machine
Note :Ground flatness ±10mm.
