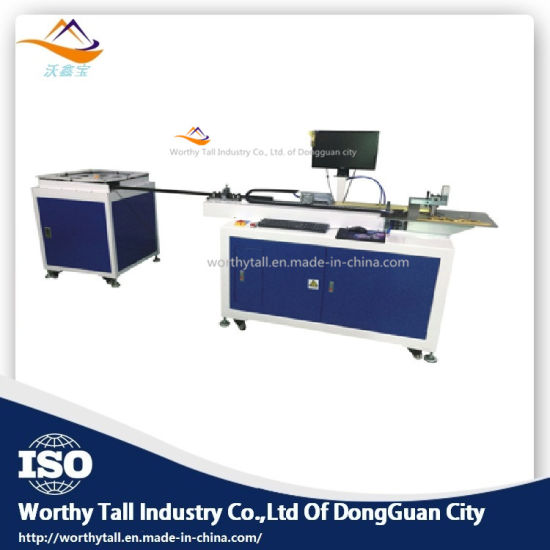

Extensive Used Auto Bending Machine
| Quantity: | |
|---|---|
-
WT12
-
Cnc Bending Machine
-
90-100mm
-
Minimum Bending Size of The Rear(mm): >0mm
-
±0.03/300mm
-
±0.2/100mm
-
Autocad Dxf and So on
-
Automatic Continuous Bridge, Low Noise
-
Automatic Cut-off or Swing
-
Gyc Bending Machine
-
1.8kw 110V 220V / 60Hz 50Hz
-
Warranty 12 Month
-
WT
-
Export Standard Wooden Case
-
2600× 1025× 1470mm
-
Dongguan City China Prc
-
8462219000
WT12 Auto Bender Machine, Bending Machine,Cutting Machine
WT12 Function Introduction:
The Differences and advantages From other Company
WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
Automatically adjust the height of the bridge.15 18 mm By a switch.
No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,The the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
The shimpo reducer is original imported from japan,while others are made in china only.
WT12 Function Introduction:
| Technical Parameters | Blade thickness(mm) | ||||
| 0.45 | 0.53 | 0.71 | 1.07 | ||
| Blade height(mm) | 8-25 | 8-25 | 8-25 | 32 | |
| Maximum bending angle | 100 | 100 | 100 | 90 | |
| Minimum bending radius of 90 degrees(mm) | 0.4 | 0.4 | 0.5 | 0.8 | |
| Minimum bending size of the front(mm) | 1.0 | 1.0 | 1.5 | 2.0 | |
| Minimum bending size of the Rear(mm) | >0 | >0 | >0 | >0 | |

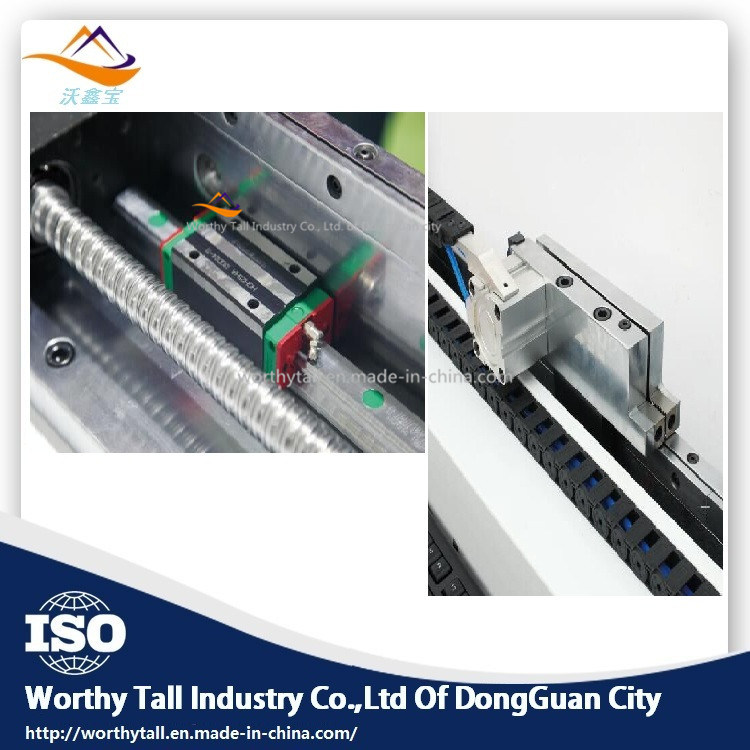

| Feeding Accuracy | 0.03/300mm Panasonic Server Motor And High Precision Screw guide | ||||
| Bending Flatness | 0.2/100mm | ||||
| Bridge Mode | Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive,Low noise | ||||
| Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive ,Low noese,Full Power,add olecranon pneumatic machine | ||||
| Best Files format | DXF,DWG,AI,CDR,PLT | ||||
| Weight | 520kg | volume | 2600*1025*1470 | ||
| Total power | 1.8kw 110V 220V/ 60HZ 50HZ | ||||
