High-Power Die Board Laser Cutting Machine
| Weigth: | |
|---|---|
| Quantity: | |
-
WT-1000W
-
WT
-
8456110090
WT-LC1250-2500 1500W Die Board Laser Cutting Machine
Technical Parameters:
Machine Features:
Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.
Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
Software is easy to operate, simple and easy to understand
Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
Laser Cutting Machine Operating Environment Request:
Floor Space/Occupied Area: Length 8Meters Width 5Meters around 40 square meters
Air-Condition One Set for Laser Generator
High Requirement Of Foundation: Concrete Foundation, Flat, strong and stable.
Assistant Equipment Request to run the Laser Cutting Machine:
Air Compressor One Set (Power 5KW or 7.5KW 10HP, match with 0.6MPA gasholder )
Freezer Dryer One Set (Assistant to be used with Air Compressor)
30KW Voltage Stabilizer One Set ( Can be used for both laser and bender machine together)
Assistant using Gas and Liquid
Assistant using Gas: CO2, He, N2 and O2 (for cutting iron board sheet)
Liquid: Purified Water
Applications:
It's widely used in printing, package, die making, advertising signs, metal plates…etc. industries.
Applicable materials:
Plywood, MDF board, acrylic, iron board, steel board, stainless steel board…etc. metal and non-metal materials.
After-sales service:
English-speaking engineer is available for installation and training under buy's cost around 5days.
English software, installation and related training instructions and videos are available for end-users.
In case of any problems or questions about laser technology you can always refer to WT Laser.
With our customer-orientated service support, maintenance and repair costs will be kept low.
One year guarantee for machine is promised.

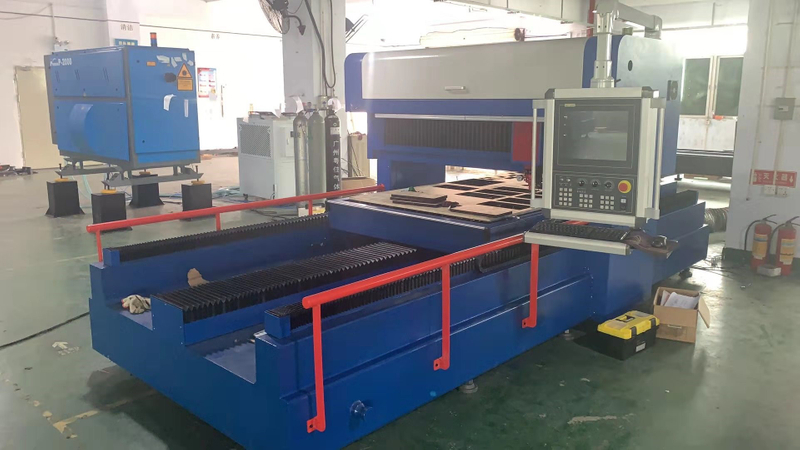

WT-LC1500-1325 1500W Die Board Laser Cutting Machine Picture:
