India South America Buy Better Quality Best Selling Fully Automatic Blade Bender/Die Cutting Manufacturer Direct Shipping Price Is More Beautiful
| Quantity: | |
|---|---|
-
WT21
-
Cnc Bending Machine
-
Steel Rule Die Making
-
Bending Bridge Cutting Lipping
-
0.6 MPa
-
Die Making Bending Machine
-
8462219000, 8462219000
-
220V Single Phase 50Hz
-
1.5kw
-
1PT 2PT 3PT 4PT
-
8-50mm
-
R0.5 mm
-
WT
-
Export Standard Wooden Case
-
3125× 1025× 1470mm
-
Dongguan City China Prc

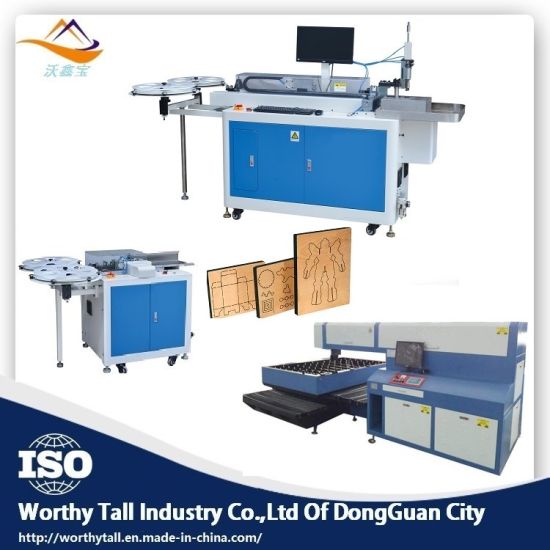

WT21 automatic pipe bending machine high efficiency and high precision automatic bending/bending/sliding/lifting/cutting Factory direct sales to the world No middleman price is more beautiful
WT21 is designed to meet the needs of apparel, bags, electronics, greeting cards, business cards, stationery, invitations and announcements for manufacturers and commercial letterpress shops.
Function points:
Can achieve bending at the same time, playing bridge, former chick, chick, sliced before and after sliced six functions, fast accurate;
After bending, graphics in the machine can be directly checked plate, no extra set trimming and polishing.
Implementation in the true sense of full automatic machetes, greatly save the time of loaded knife plate;
Powerful software control system, make any request to the machetes are handy.
Applicable to electronic BanDao mould, cutting die box, card knife mould, doll and blister bending die cutter.
Product introduction function parameters
Automatic machetes machine function is introduced:
1. At the same time before bending, playing bridge, chick, chick, sliced before and after sliced six functions, fast accurate;
2. The graphics on the machine after bending, can be directly checked plate, do not need to the other side trimming and polishing.
3. The implementation in the true sense of full automatic machetes, greatly save the time of loaded knife plate;
4. Can use six functions at the same time, also can choose only one or several of them;
5. Strong perfect software control system, make any request to the machetes are handy.

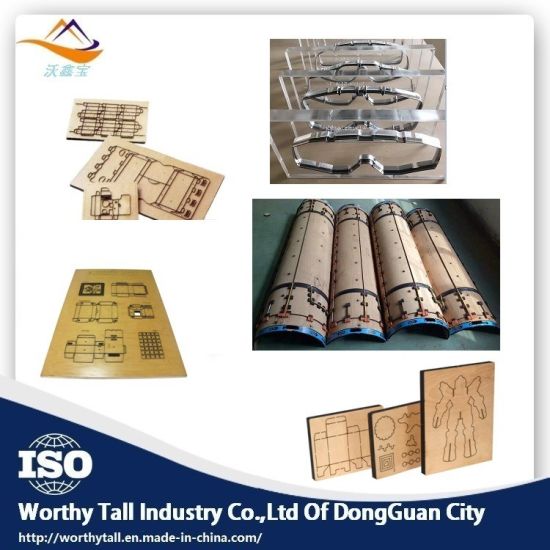

6. Applicable to electronic Ban Dao die, die cutter box, card knife die, doll and blister bending die cutter.
Automatic machetes machine working principle:

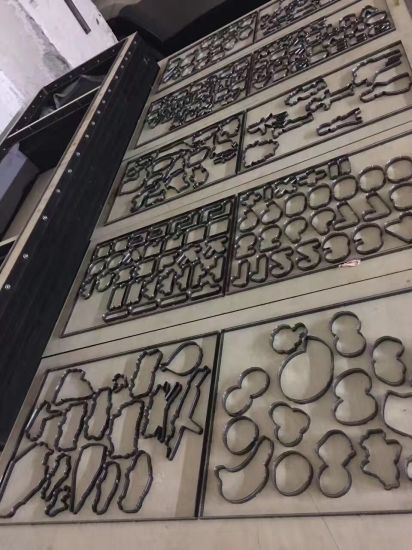

Automatic machetes machine is used for laser cutting die used in the electronics, printing and packaging industry production.
Die cutting knife is high - 30 mm, 8 mm thick 0.45 mm - 1.05 mm strip single edge razor blades, common specifications for 1 m long straight knife or 100 m disc knife, the plane figure is equal to a graphics processing boundary. CNC bending machine is mainly composed of nc system, feeding mechanism, rotating mechanism and a curved knife mouth. Curved knife mouth can be divided into solid
Mould and rotational mould. In the process of die cutting knife, the blade can feed mechanism in curved knife mouth fixed mold, fixed die hang on blade, rotary driving rotational mould the blade bending with precision, so repeated work, complete the booking form. Die cutting knife set in the motherboard (wooden or plastic, metal, etc.), is the die cutting plate.
Will die cutting plate installed on the special equipment, can achieve large opening a punching forming of packaging and printing materials.
Automatic machetes machine development:
Electronics, printing and packaging industry rapid development today, as its supporting industries, die cutting board () of the knife mold processing industry got great development. With the increase of market share, more and more enterprises and capital into the industry, the originally very profitable knife mold processing industry has entered a difficult position
. But, in the price as the main factor of market competition, enterprises in addition to reduce the production cost, improve production efficiency, it is also an important factor to win in the competition. Automatic computer machete machine as one of two core equipment in the production of the knife mold, the knife mould machining precision and efficiency of plays an important role.
But before fully automatic computer machete machine imported from abroad is not only expensive, and difficult maintenance. Domestic computer machete machine and can only achieve the function of simple graphics roughly bending, playing bridge, sliced, and other functions also can only use done by hand, low productivity and easy restricted by operator's technical level, to the quality of the product
Good Withers not neat, to improve the quality of laser cutting die and production efficiency is difficult to solve the problem.
After learning that the laser knife mould (die cutting plate) manufacturing industry wide development prospects, he use oneself in the advantage of nc control system research and development, organization of a batch of the automation equipment manufacturing industry's top engineers, technicians of the r&d team, to launch a new automatic machetes machine research and development work. In view of the domestic laser cutting die
Industry development present situation and application of the technology, after rectified time targeted for the hardware design, software process absorbed the advantages of domestic and international numerous manufacturers, developed the "star" of the knife mold series computer machete machine has the following main advantages:
1, the control system is powerful, easy to operate, not only support the DXF format of AUTOCAD software, can also be independent support CORELDRAW or ILLUSTRATOR software * AI format, curved knife without using CAD software to stroke, greatly saves time and improves the efficiency of domestic initiative.
2, computer machete machine blade feeding part adopts imported screw clamp cutter feeding way, size accurate error-free, good repeatability, and the product make the operation more safe and reliable.
3, computer machete machine bending part adopts imported servo motor imported fromJapanand abroad steel bending die, well-produced box mold, cartoon, doll mode and wavy lines and other complex graphics, speed of high efficiency and accuracy in position.
4, a computer machete machine when six technical university teacher, greatly improving the work efficiency, decrease the cost of the factory management, get rid of the dependence of artificial making difficult cutting die.
As is known to all, now the price of the knife mold industry competition, has been to the white-hot stage, reduced the price of laser cutting die down again and again, simply focus on price competition, it is a kind of helpless choice. To work a good job, must first sharpen his, market competition, competition is not only the price, but also the competition of cost, efficiency and quality
Dispute - hope our automatic computer machete machine can for you to reduce factory labor costs, improve product quality and efficiency, can make your business grow faster!
>>> Machine Feature
Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee

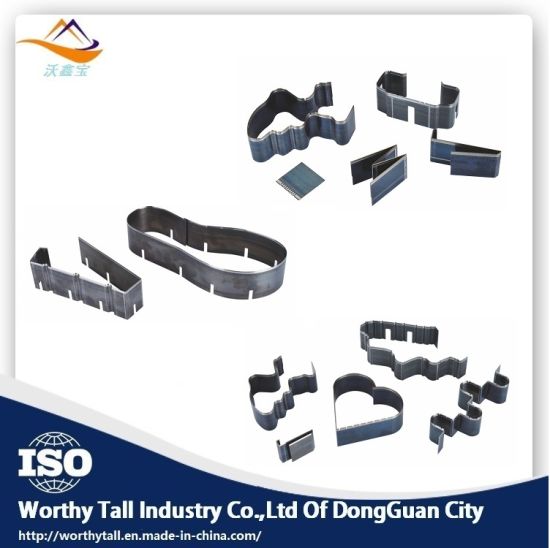

>>> Applicable materials and industries
Widely used in blade bending, package box and so on
>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately
2.Cutting-----automatical cutting, easy to cut the steel rules
3.Bridging-----automatic bridging
4.Lipping-----automatic lipping
5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly
6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays
7.Software-----English interface is easy to learn and operate
WT09 Specification:
| Technical Parameters | Blade thickness(mm) | |||||
| 0.45 | 0.53 | 0.71(2PT) | 1.07(3PT) | 1.42(4PT) | ||
| Blade height(mm) | 8-25 | 8-25 | 8-30 | 8-40 | 8-60 | |
| Maximum bending angle | 100 | 100 | 100 | 100 | 100 | |
| Minimum bending radius of 90 degrees(mm) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Minimum bending size of the front(mm) | 1.0 | 1.0 | 1.5 | 1.5 | 1.5 | |
| Minimum bending size of the Rear(mm) | >0 | >0 | >0 | >0 | >0 | |
| Feeding Accuracy | 0.03/300mm Panasonic Server Motor And High Precision Screw guide | |||||
| Bending Flatness | 0.2/100mm | |||||
| Bridge Mode | Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive | |||||
| Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machine | |||||
| Line Cut | Efficiently Bending the Blade and Cutting the Line At the Same time. | |||||
| Best Files format | DXF,DWG,AI,CDR,PLT | |||||
| Weight | 620kg | volume | 2660*1150*1540 | |||
| Power | 1.8kw 110V 220V / 50HZ 60HZ | |||||

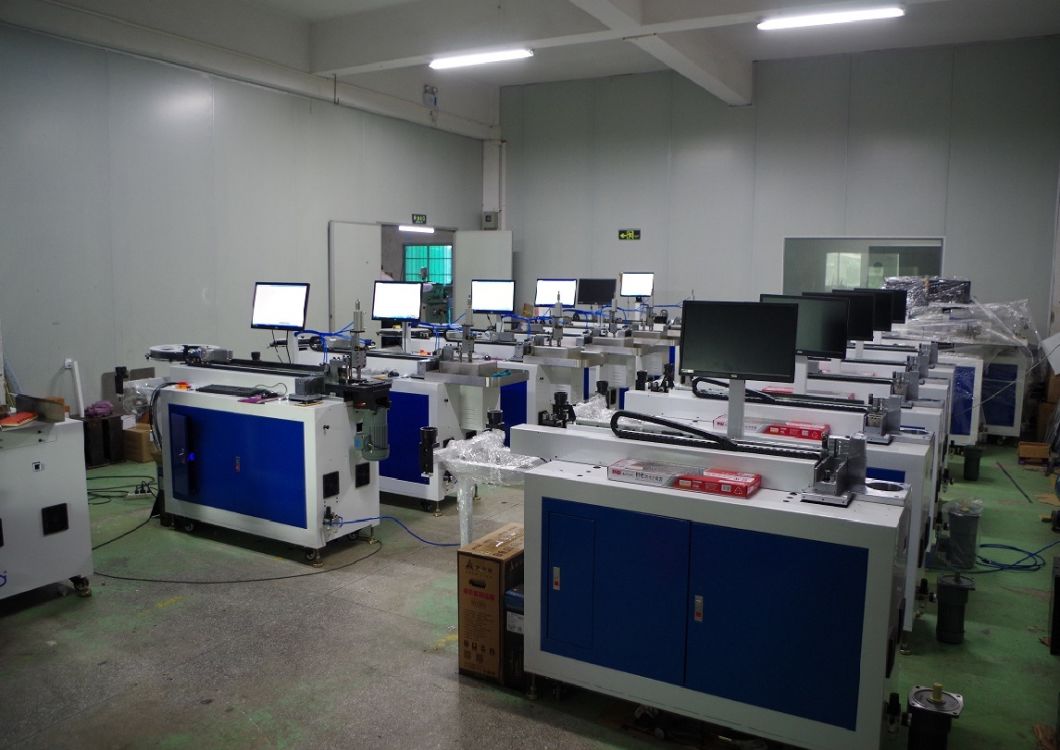

>>> Machine Details
>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
>>> Our Exibition Sino Packing Expo
>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and LifeLong engineering service.
Why Choose Us
⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Customer Needs is my Pursuit !
Creditable professional Heartfelt services
Any more product information, please contact us !
