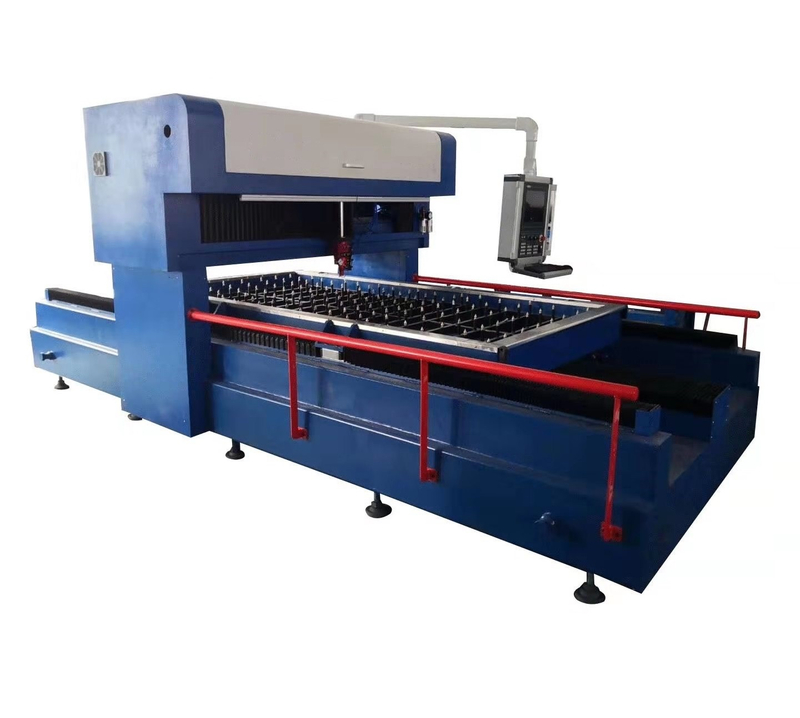

Laser Cutting Machine and Auto Bender Machine for Die Board


Laser Cutting Machine and Auto Bender Machine for Die Board

Technical characteristics:

  1. The gantry structure, mix optical path, good rigidity, high stability, compact  structure,  covers an area of the smallest.

  2. Special NC  system with Germany PA laser, laser and machine tool control system.

  3. The machine tool system adopts closed optical path of light transmission, quick change drawer type mirror, make sure the lens is clean and long  life time.

  4. Double dedusting  duct, exhaust effect is better.

  5. Can prevent sheet metal mobile workstation equipped with clamp, Ensure Parts processing precision.

  6. The laser cutting header is equipped with inductance contact tracking system is responsive, guarantee the slit width is consistent, Is equipped with a cutting head and plate collision protection device.

  7. CNC electric control console can move, medium height, easy to operate

  8. use upper and lower area dust removal system at the same time, cutting waste from funnel fall into the scrap car, convenient operators regular cleaning.

  9. In U.S. LASERMECH capacitive sensor and cutting head adopts drawer focus lens seat replacement ,cleaning the lens is extremely convenient .Cutting head with the collision protection.

  10. The enclosed light path ,positive pressure dust cleaning ,ensure that the ser vice life of the lens.

  11. Three cutting gas are free to choose ,the pneumatic system adopts the design of high voltage in the cutting of stainless plate. The nitrogen pressure of 2.0Mpa.

Technical parameters

Effective Processing range(mm) 1200x1800/200x2400
The X axis(mm) 1200
Y The X axis(mm) 1800/2400
The Z axis stroke(mm) 80
X/Y location accuracy(mm/m) +- 0.03
X/Y repeat positioning accuracy(mm/m) +-0.01
X/Y fast moving speed(m/min) 15
Machine tool positioning speed(m/min) 50
The workbench maximum loads 300
Knife template cutting thickness(mm) 1-30
Knife template cutting speed(m/h) 75-220
Working voltage 380v  50hz

Machine Details:
Laser Cutting Machine and Auto Bender Machine for Die Board
Laser Cutting Machine and Auto Bender Machine for Die Board
Laser Cutting Machine and Auto Bender Machine for Die Board

>>> Package & Shipping

Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.

Die Board Laser Cutting Machine

>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and life-Long engineering service.
