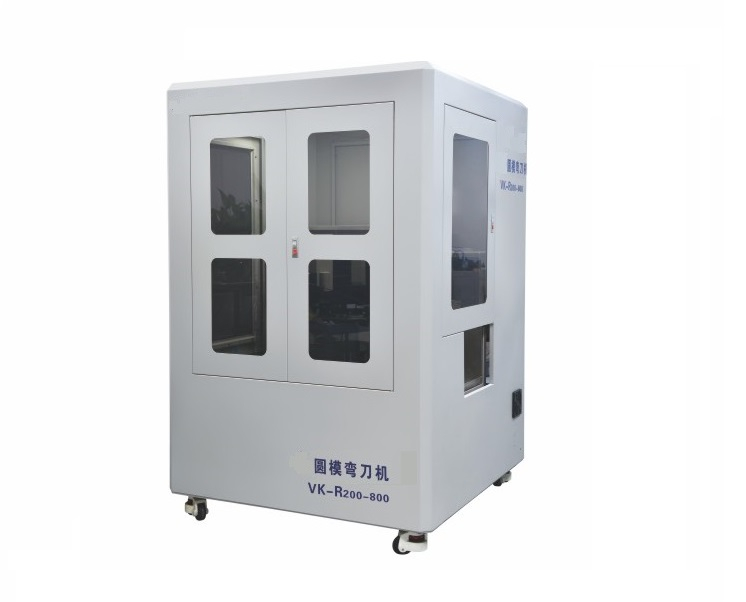

Multi-Diameter Rotary Die Bending Machine For Curved Rule Bending
The newest WT bender,the WT-RB, adds a new dimension to rotary die bending through its multi-diameter adjustability. With the capability to bend rotary rule from 260 to 700 mm diameter, this machine provides die makers the flexibility and reliability needed in the rotary die board making industry.
Featuring a positive roller feed system for fast precision, a Servo Ruducer cutting system for strength, and our Patent Pending bending mechanism, the WT-RB automatic steel rule bender produces the most accurate and fully closed bent pieces possible on an automated curved-rule bending machine.
Featuring a positive roller feed system for fast precision, a Servo Ruducer cutting system for strength, and our Patent Pending bending mechanism, the WT-RB automatic steel rule bender produces the most accurate and fully closed bent pieces possible on an automated curved-rule bending machine.
| Size: | |
|---|---|
| Weigth: | |
| Quantity: | |
-
WT-RB
-
WT
-
8462219000
WT-RB Technical Parameters:
Technical Parameters | Blade thickness (mm) | |||||
0.71(2pt) | 1.05(3pt) | 1.42(3pt) | ||||
Blade height (mm) | 22-28 | 22-28 | 22-28 | |||
Blade Diameter (mm) | 300-650mm | 300-650mm | 300-650mm | |||
Maximum bending angle | 100 | 90 | 90 | |||
Minimum bending radius of 90 degrees (mm) | 0.5 | 0.7 | 0.7 | |||
Minimum bending size of the front (mm) | 2 | 2 | 2 | |||
Minimum bending size of the Rear (mm) | >2 | >2 | >2 | |||
Feeding Accuracy | 0.02/200mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm Panasonic Server Motor Combined with Japan Reducer | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(12—18mm) width (10-15mm) Gear Motor drive | |||||
Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor) | |||||
Pneumatic parts: | Taiwan-- AirTag | |||||
Best Files format | DXF,DWG,AI,CDR,PLT | |||||
Weight | 720kg | Volume | 1350*1260*1950 | |||
power | 3.5kw 220V/ 50HZ | |||||
WT-RBAuto Bender Machine Features:
1. WT Bending Machine Can process The Curved Rule from 300mm to 650mm.
2. Automatic identificate Cutting direction, Cutting The Knife At any short you want.
3. Automatically adjust the height of the bridge.12-18 mm Width 10-15 mm By a switch.
4. No Noise Cutting and Bridging By Gear reduce Motor, No insufficient strength Or Blocking Knife.
5. WT Bend Machine Can Make Bridge Hole continusly, Continuous Working, No Round-trip back to Make bridge.
6. WT Auto BenderMachine Has The Integrated Working(Select All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Creasing Rules)
7. WT Auto BenderMachine Has The Automatic alarm and Self Protect Function. When false operation and machine break down,The Machine Will Stop and Show the ErrorCode, You Can Check it easily.
8. All Parts of the Machine are produced by ourselves. It is rather convenient to Maintain and Replace. All The Mold Of Bending machine are Maintained (regrinding)for free.
9. The Auto BenderControl System is developed by ourselves ,we promise it is free for any customer to update life time. Our Machine Also can bend the knife and cut the Creasing Rule at the same time(option function)
10. The Shimpooreducer is original imported from Japan.
11. Englishsoftware, installation and related training instructions and videosare available for end-users.
12. In case of any problemsor questions about Laser Die Making technology you canalways refer to Worthy Tall.
13. With our customer-orientated servicesupport, maintenance and repair costswill be kept low.

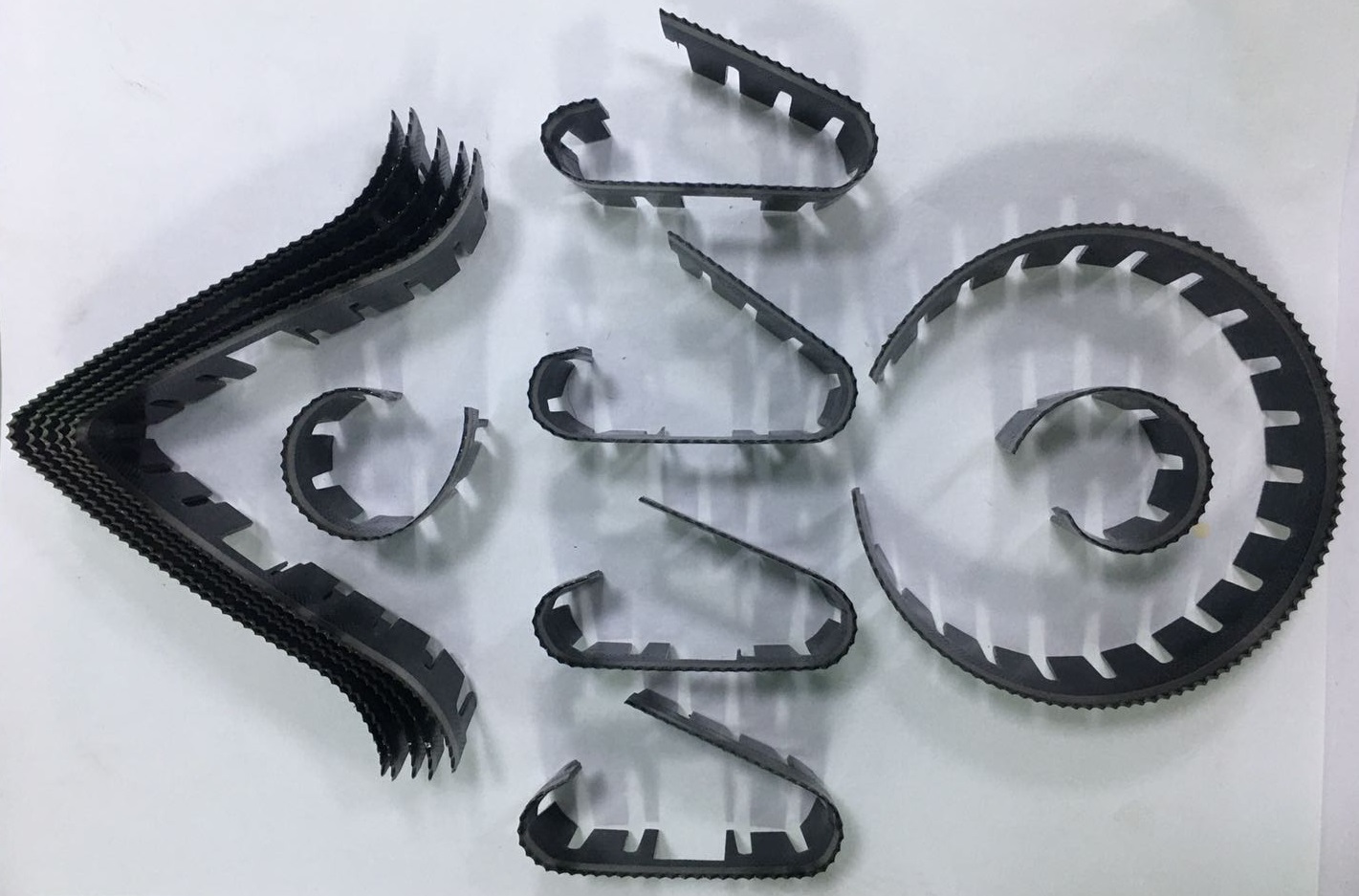

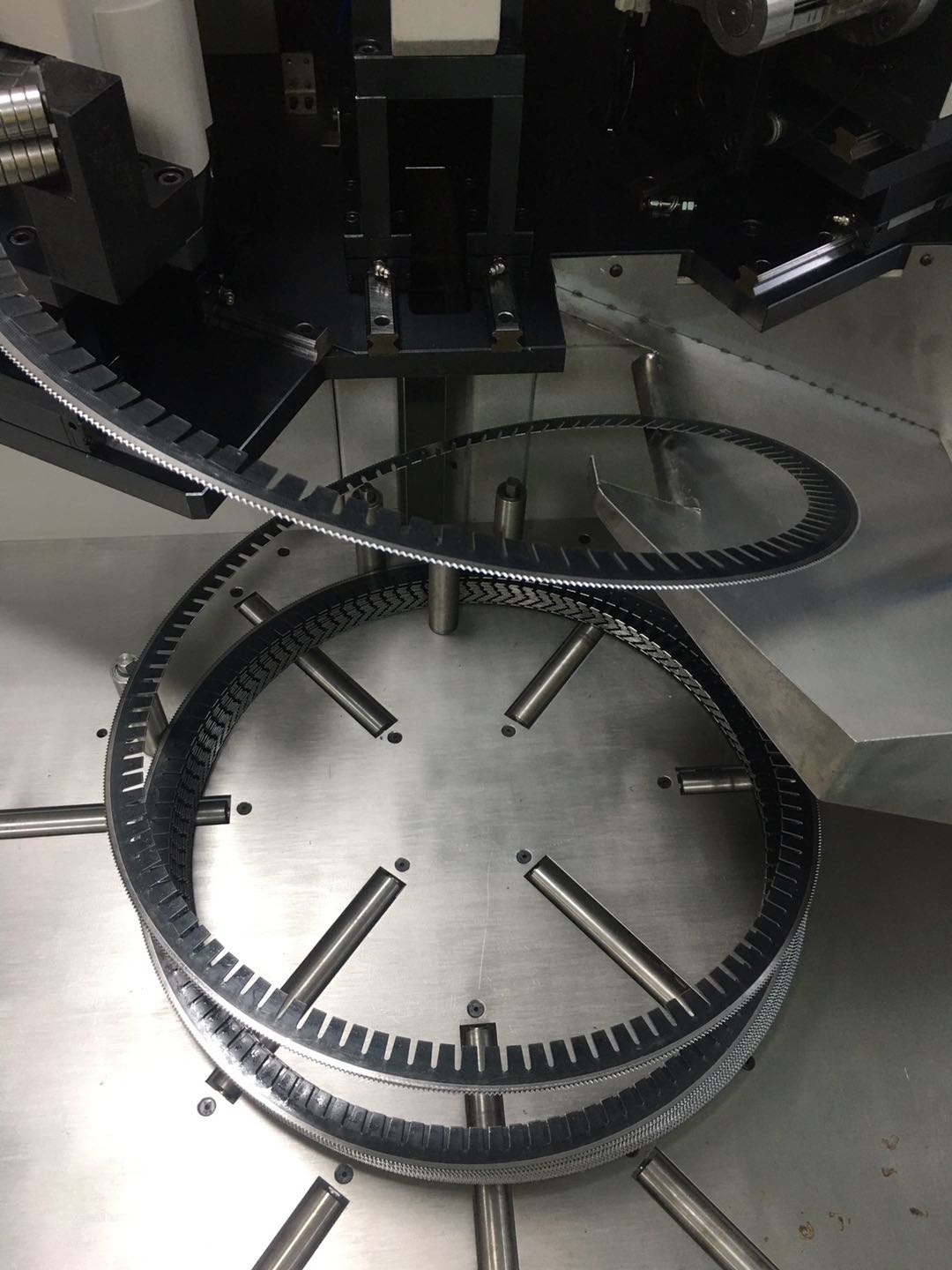

WT-RB Auto Bender Machine Pictures:
WT-RB Technical Parameters:
Technical Parameters | Blade thickness (mm) | |||||
0.71(2pt) | 1.05(3pt) | 1.42(3pt) | ||||
Blade height (mm) | 22-28 | 22-28 | 22-28 | |||
Blade Diameter (mm) | 300-650mm | 300-650mm | 300-650mm | |||
Maximum bending angle | 100 | 90 | 90 | |||
Minimum bending radius of 90 degrees (mm) | 0.5 | 0.7 | 0.7 | |||
Minimum bending size of the front (mm) | 2 | 2 | 2 | |||
Minimum bending size of the Rear (mm) | >2 | >2 | >2 | |||
Feeding Accuracy | 0.02/200mm Panasonic Server Motor And High Precision Screw guide | |||||
Bending Flatness | 0.2/100mm Panasonic Server Motor Combined with Japan Reducer | |||||
Bridge Mode | Automatic continuous bridge, bridge height adjustable(12—18mm) width (10-15mm) Gear Motor drive | |||||
Cutting Mode | Automatic cut-off or swing(Automatic identification alarm and self Monitor) | |||||
Pneumatic parts: | Taiwan-- AirTag | |||||
Best Files format | DXF,DWG,AI,CDR,PLT | |||||
Weight | 720kg | Volume | 1350*1260*1950 | |||
power | 3.5kw 220V/ 50HZ | |||||
WT-RBAuto Bender Machine Features:
1. WT Bending Machine Can process The Curved Rule from 300mm to 650mm.
2. Automatic identificate Cutting direction, Cutting The Knife At any short you want.
3. Automatically adjust the height of the bridge.12-18 mm Width 10-15 mm By a switch.
4. No Noise Cutting and Bridging By Gear reduce Motor, No insufficient strength Or Blocking Knife.
5. WT Bend Machine Can Make Bridge Hole continusly, Continuous Working, No Round-trip back to Make bridge.
6. WT Auto BenderMachine Has The Integrated Working(Select All The Knife you want to bend, Then the Machine Will bend All the Knife Continusly, The Same as Cutting Creasing Rules)
7. WT Auto BenderMachine Has The Automatic alarm and Self Protect Function. When false operation and machine break down,The Machine Will Stop and Show the ErrorCode, You Can Check it easily.
8. All Parts of the Machine are produced by ourselves. It is rather convenient to Maintain and Replace. All The Mold Of Bending machine are Maintained (regrinding)for free.
9. The Auto BenderControl System is developed by ourselves ,we promise it is free for any customer to update life time. Our Machine Also can bend the knife and cut the Creasing Rule at the same time(option function)
10. The Shimpooreducer is original imported from Japan.
11. Englishsoftware, installation and related training instructions and videosare available for end-users.
12. In case of any problemsor questions about Laser Die Making technology you canalways refer to Worthy Tall.
13. With our customer-orientated servicesupport, maintenance and repair costswill be kept low.

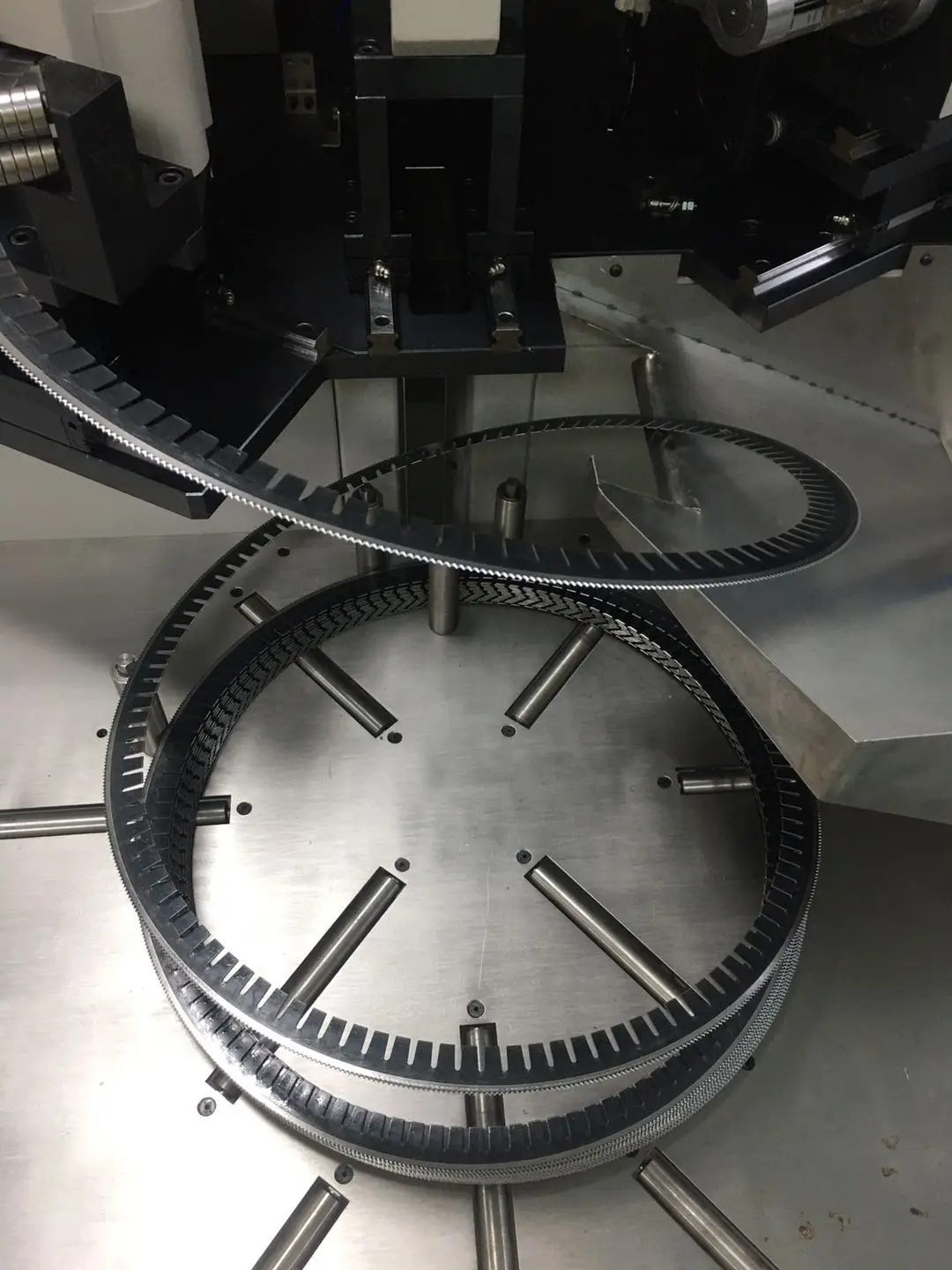

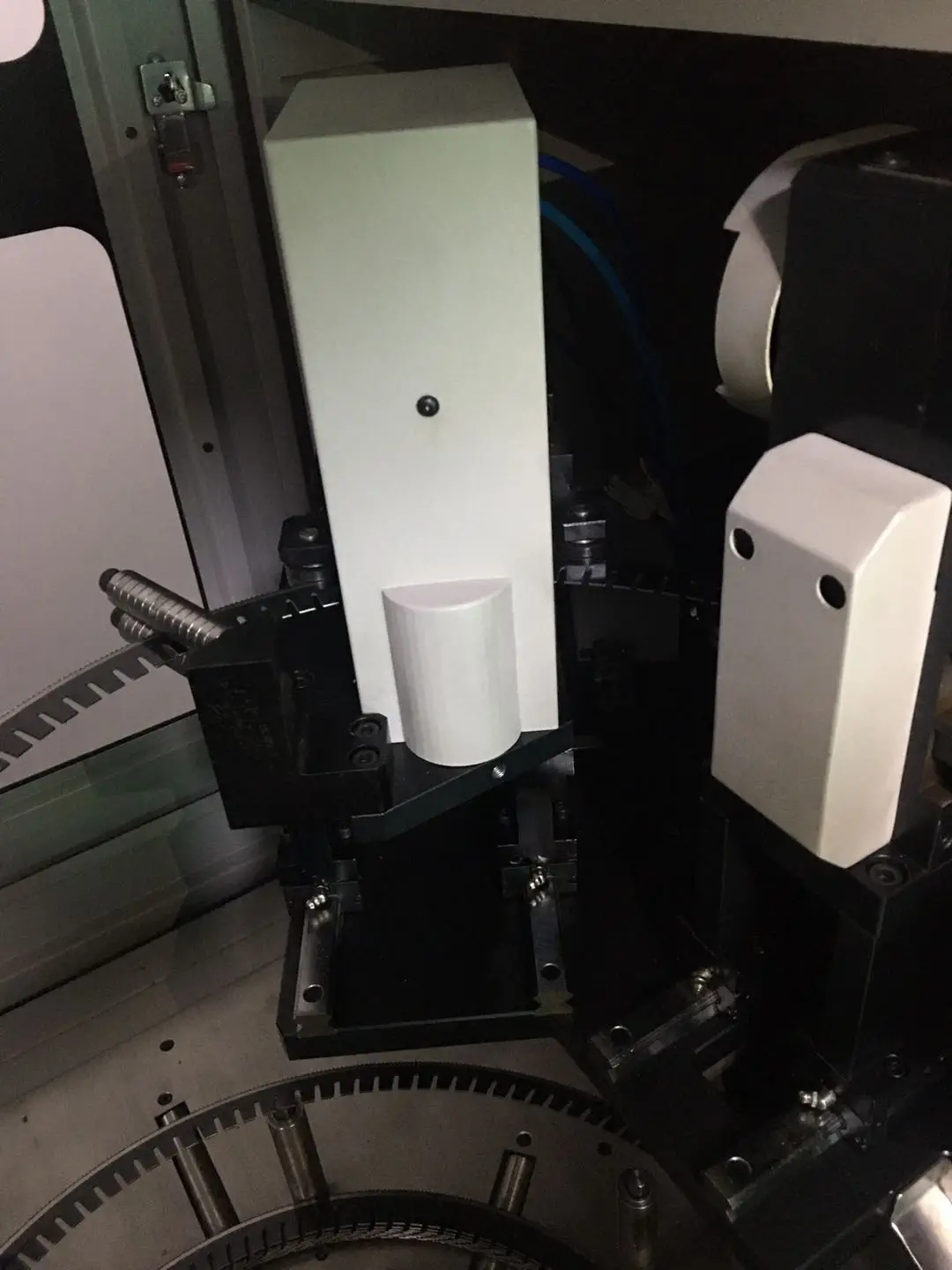

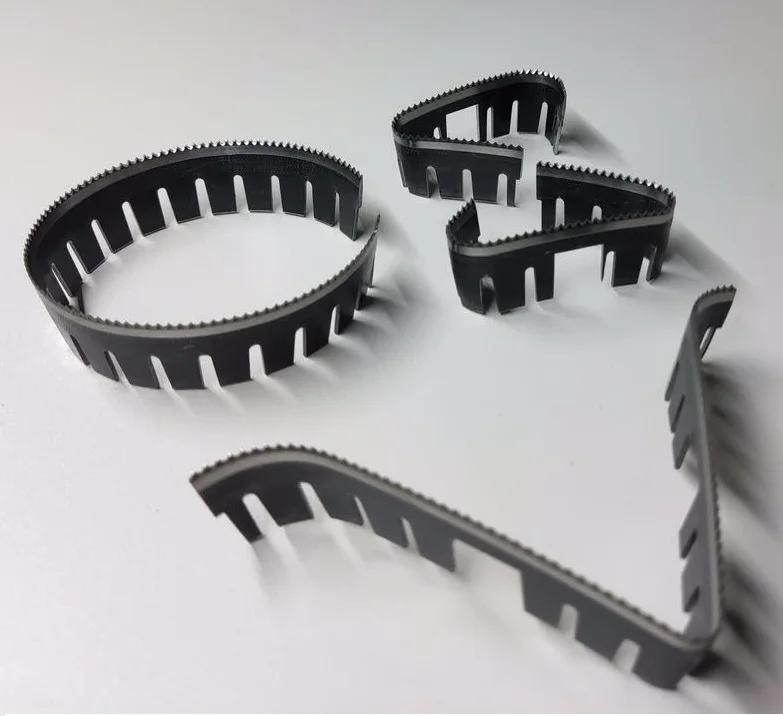

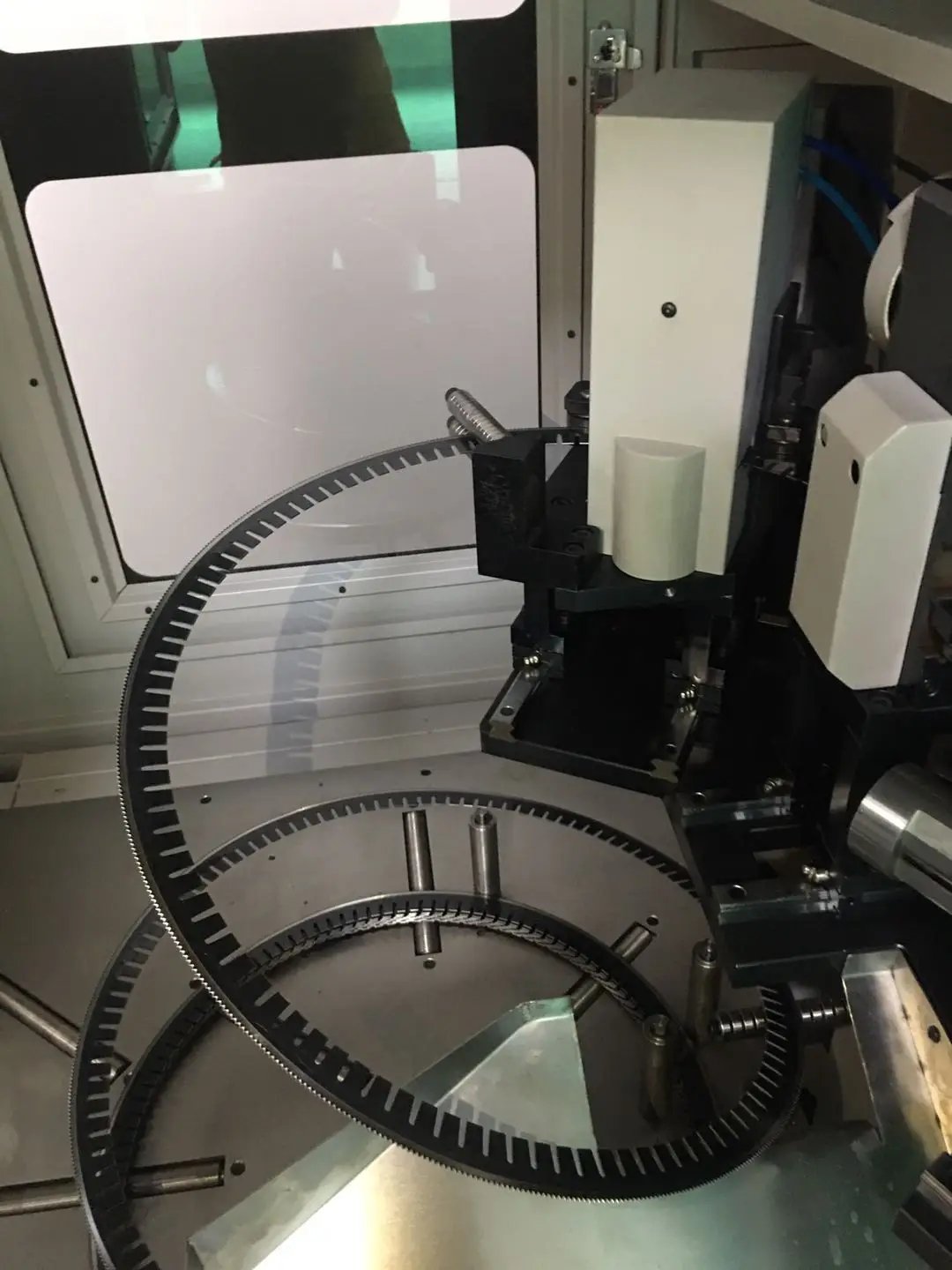

WT-RB Auto Bender Machine Pictures:
